| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | Yuhong |
| إصدار الشهادات: | ASME U Stamped NB PED |
| رقم الموديل: | مبادل حراري قذيفة وأنبوب |
| الحد الأدنى لكمية: | 1 مجموعة |
|---|---|
| الأسعار: | Negotaible |
| تفاصيل التغليف: | باقة البحر جديرة |
| وقت التسليم: | 30-180 يوما |
| شروط الدفع: | الاعتماد المستندي، تي/تي |
| القدرة على العرض: | 3000 مجموعة / سنة |
| التطبيقات: | صناعة النفط والغاز | طلب: | النفط والغاز والكيماويات وتجهيز الأغذية والبناء |
|---|

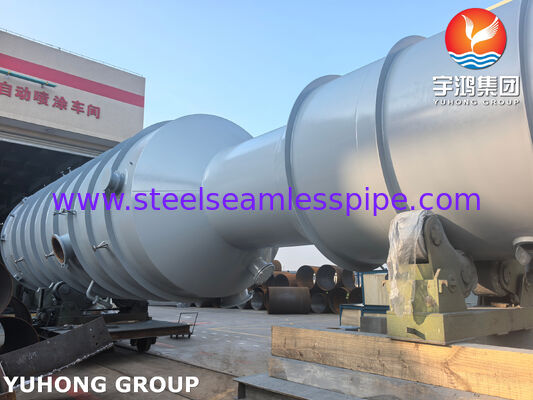

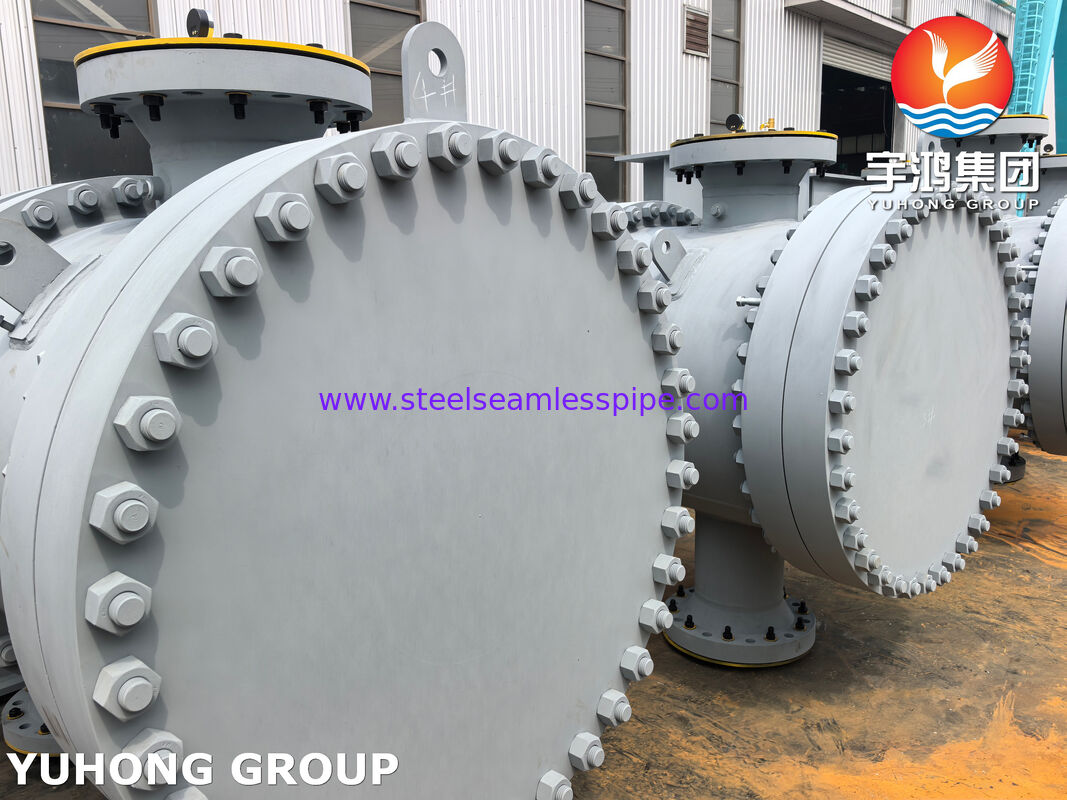

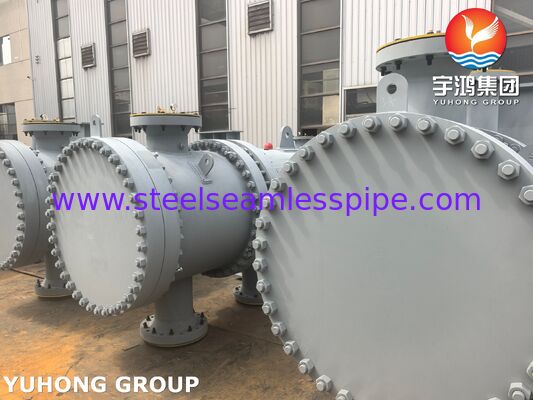

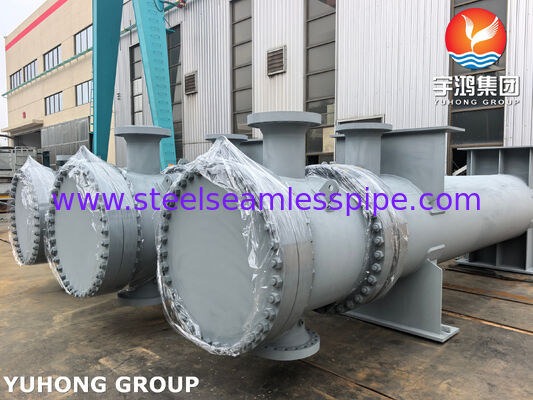

Our Shell and Tube Heat Exchangers are engineered for high-performance heat transfer in demanding industrial environments. Designed in accordance with international standards (ASME, TEMA, GB/T 151), they provide robust, long-lasting solutions for heating, cooling, condensation, and evaporation processes.
Whether you are in chemical processing, oil & gas, power generation, HVAC, or food production, our heat exchangers deliver consistent thermal efficiency under extreme temperatures and pressures.
| Feature | Benefit |
|---|---|
| Heavy-duty construction | Withstands high pressure (up to 30+ MPa) and high temperature (up to 600°C) |
| Flexible design options | Fixed tube sheet, floating head, and U-tube types to suit various thermal and cleaning requirements |
| High thermal efficiency | Optimized baffle spacing and tube arrangement (triangular or square pitch) for maximum heat transfer |
| Corrosion-resistant materials | Available in carbon steel, stainless steel, titanium, and special alloys for aggressive fluids |
| Easy maintenance | Removable tube bundle options for mechanical cleaning and inspection |
| Type | Best For |
|---|---|
| Fixed Tube Sheet | Low temperature difference, clean fluids on shell side |
| Floating Head | Large temperature differences, dirty fluids requiring regular cleaning |
| U-Tube | High temperature / high pressure, thermal expansion concerns |
| Parameter | Value |
|---|---|
| Heat transfer area | 1 m² - 2,500+ m² |
| Shell diameter | 100 mm - 2,500 mm |
| Tube length | 1.5 m - 12 m |
| Tube outer diameter | 12 mm - 51 mm |
| Design pressure | Vacuum - 35 MPa |
| Design temperature | -50°C - 600°C |
Our heat exchangers combine robust engineering with flexible design options to meet your specific industrial requirements. With proven performance across multiple industries and compliance with international standards, we deliver reliable thermal solutions that stand up to the most demanding operating conditions.
