| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | YUHONG |
| إصدار الشهادات: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| رقم الموديل: | ASTM A694 F56 شفة WNRF من الفولاذ الكربوني |
| الحد الأدنى لكمية: | 1 قطعة |
|---|---|
| تفاصيل التغليف: | حالة الخشب الرقائقي/البليت |
| وقت التسليم: | 7 أيام |
| شروط الدفع: | الاعتماد المستندي، تي/تي |
| معيار: | أستم A694 / أسمي SA694 | مادة: | F56 |
|---|---|---|---|
| التطوير التنظيمي: | 1/2 "- 60" | وزن: | إس سي إتش 5S - إس إتش إكس إكس إس |
| نوع شفة: | WNRF | فصل: | 150 # ، 300 # ، 600 # ، 900 # ، 1500 # ، 2500 # |
| التعبئة: | حالة الخشب الرقائقي/البليت | ||
| إبراز: | ASTM A694 F56 carbon steel flanges,WNRF weld neck flange,high pressure steel flanges,WNRF weld neck flange,high pressure steel flanges |
||

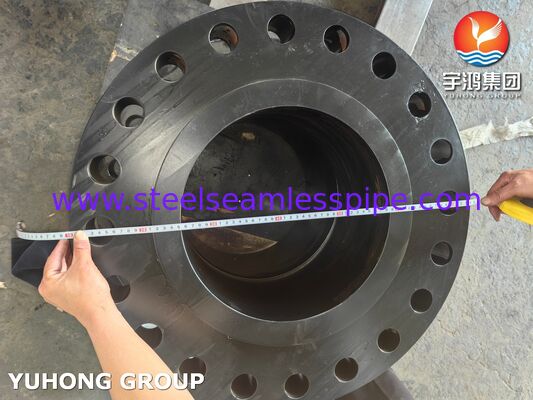

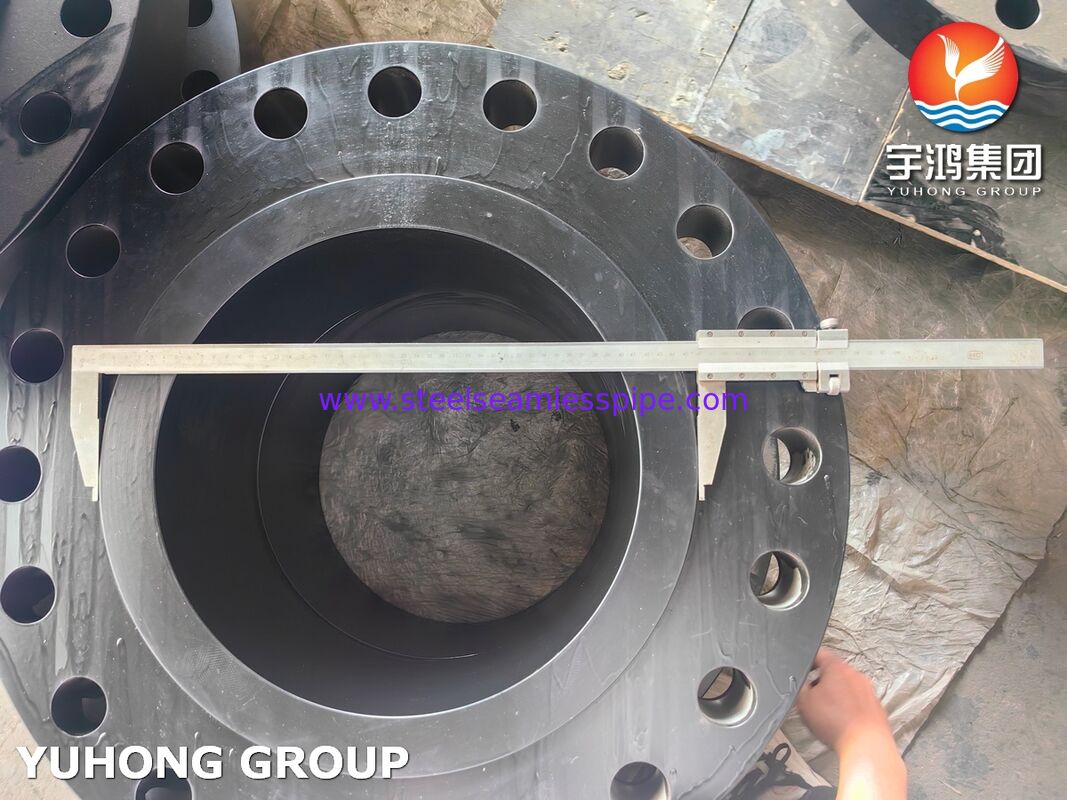

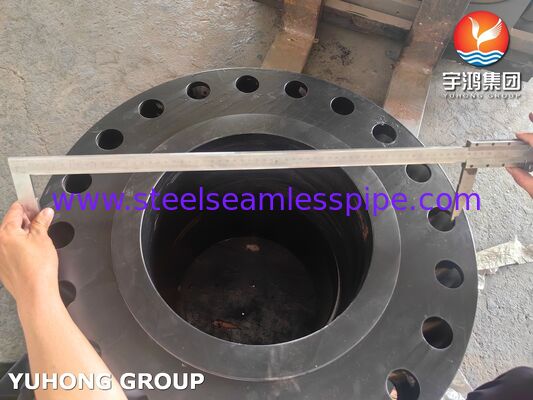

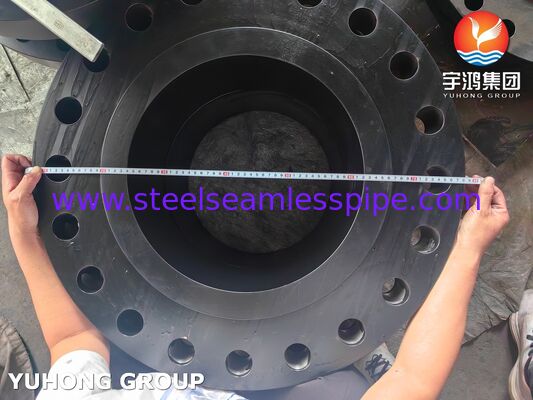

ASEME B16.5 ASTM A694 / ASME SA694 Carbon Steel WNRF Flanges
ASTM A694 F56 carbon steel flanges are high‑strength, impact‑tested forgings designed for high‑pressure and moderate‑low‑temperature service, particularly in the oil & gas pipeline and wellhead sectors. Their key strength is compatibility with API 5L X52–X65 line pipe, combined with mandatory impact testing and the ability to meet NACE MR0175 for sour service. When paired with ASME B16.5 weld neck design, they offer a reliable, code‑compliant solution for critical piping systems.
Chemical Composition % of ASTM A694 F56 Carbon Steel WNRF Flange
| C | ≤0.30 |
| Mn | ≤1.60 |
| P | ≤0.025 |
| S | ≤0.025 |
| Si | 0.15-0.35 |
Dimension of ASTM A694 /ASME SA694 Flange
| Standard | Material / Grade |
| ASTM A694 / ASME SA694 | F42, F46, F48, F52, F56, F60, F65, F70 |
| Dimension | |
| ASME B16.5 | Size:1/2"-24" Wall thickness:SCH5S-SCHXXS Class:150-1500# |
| ASME B16.47 | Size:26"-48" Wall thickness:SCH5S-SCHXXS Class:150-1500# |
| ASME B16.48 | Size:1/2"-24" Wall thickness:SCH5S-SCHXXS Class:150-1500# |
| MSS SP-44 | Size:12"-60" Wall thickness:SCH5S-SCHXXS Class:150-1500# |
Why Choose This Combination Over A105?
Many engineers select ASTM A694 F56 flanges for these reasons:
Strength Matching
When the connecting pipe is API 5L X56 (yield 56 ksi), an A105 flange (yield 36 ksi) would become the pressure‑limiting component. F56 brings the flange’s yield strength into alignment with the pipe.
Impact Toughness
A694 forgings are typically impact tested (Charpy V‑notch) to ensure ductile behavior at low temperatures, often required for arctic, subsea, or winterized installations. A105 is not automatically impact tested.
Sour Service Compatibility
Many projects specify A694 F56 with NACE MR0175/ISO 15156 hardness restrictions (≤22 HRC) for H₂S environments. A105 flanges often require separate, more restrictive processing to meet these limits.
Structural Integrity
The weld neck hub provides gradual stress transition and allows full radiographic inspection of the weld. This is mandatory in critical applications where a slip‑on or socket weld flange would not be permitted.
Applications
The primary user. These flanges are found on high‑pressure wellheads, gathering systems, and long‑distance transmission pipelines.
Used in high‑pressure reactor loops, hydroprocessing units, and severe service piping where cyclic loading or low temperatures are factors.
Particularly in combined cycle plants, high‑pressure steam lines, and boiler feedwater systems that require forged components with high yield strength and fatigue resistance.
Platforms, FPSOs, and subsea manifolds rely on these flanges because of their combination of high strength, impact toughness, and reliable sealing under extreme conditions.
