Product Introduction

The removable bundle shell and tube heat exchanger is designed for industrial processes that require efficient heat transfer together with convenient maintenance access. This configuration allows the tube bundle to be pulled out from the shell, making cleaning, inspection, and replacement much easier compared with fixed tube sheet designs.

Widely used in oil refineries, petrochemical plants, and gas processing facilities, this type of heat exchanger provides stable thermal performance for cooling, heating, and condensation processes. The equipment is typically installed in process units where reliability and long-term operation are critical.

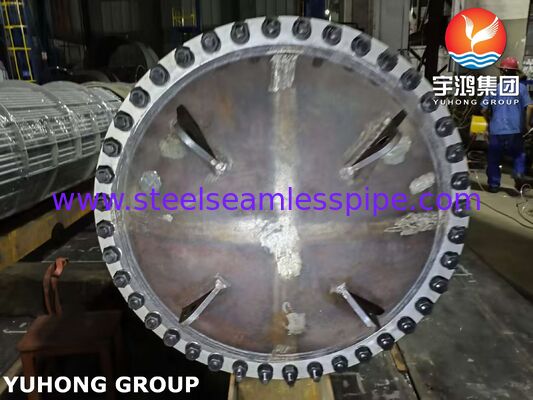

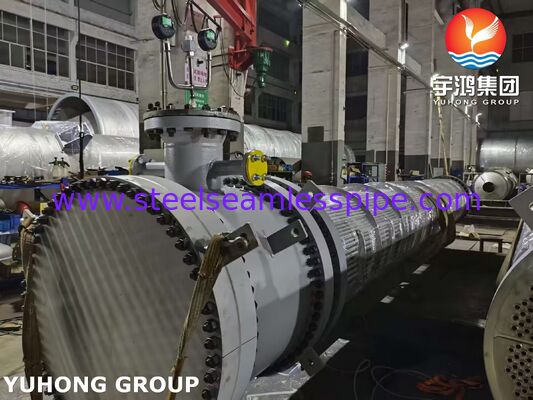

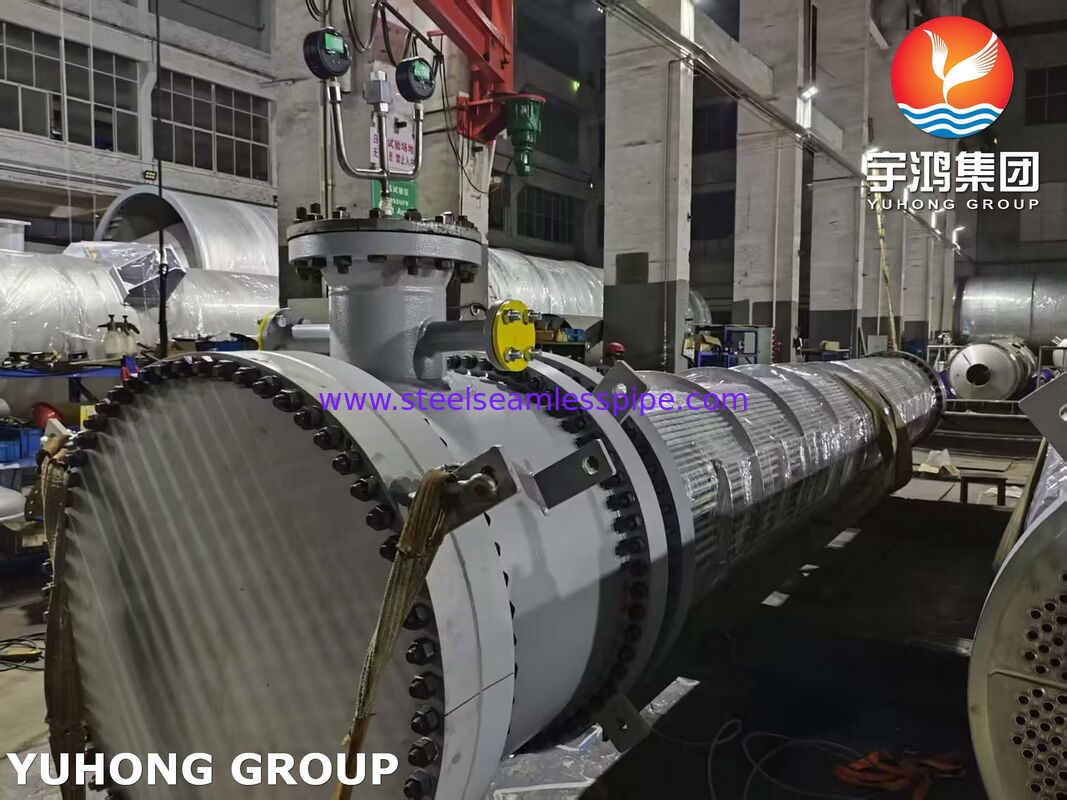

The exchanger consists of a pressure-resistant shell, tube bundle assembly, channel head, and flanged connections. The removable bundle structure allows plant operators to perform periodic maintenance without dismantling the entire unit, significantly reducing downtime in industrial systems.

Design Advantages

The removable tube bundle configuration offers several operational benefits in demanding process environments.

Easy Maintenance
The tube bundle can be withdrawn from the shell, enabling fast internal cleaning and inspection.

Efficient Heat Transfer
Multiple tubes arranged inside the shell provide a large heat transfer surface area for improved thermal efficiency.

Robust Industrial Construction
The exchanger is designed to withstand high pressure and temperature conditions commonly found in refinery and petrochemical processes.

Flexible Material Options
Materials can be selected based on process media, including carbon steel, stainless steel, and alloy materials.

Typical Industrial Applications

-Removable bundle shell and tube heat exchangers are widely applied in various sectors of the energy and process industries:

Oil refinery processing units

-Petrochemical production plants

-Natural gas treatment facilities

-LNG and gas compression systems

-Chemical processing plants

-Power plant heat recovery systems

These exchangers can handle multiple thermal processes such as process cooling, product heating, vapor condensation, and heat recovery.

About Yuhong Group

Yuhong Group is a professional manufacturer of industrial process equipment, specializing in shell and tube heat exchangers, air coolers, and pressure vessels. With more than 30 years of manufacturing experience, the company provides reliable equipment for industries such as oil & gas, petrochemical, refinery, and power generation.

Manufactured in accordance with international standards including ASME and TEMA, Yuhong equipment is widely used in heat transfer and pressure systems across global industrial projects.
