| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | YUHONG |
| إصدار الشهادات: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| رقم الموديل: | تي ذات حواف |
| الحد الأدنى لكمية: | 1 قطعة |
|---|---|
| تفاصيل التغليف: | حالة الخشب الرقائقي / البليت |
| وقت التسليم: | 7 أيام |
| شروط الدفع: | الاعتماد المستندي، تي/تي |
| أبعاد: | ANSI Flange ، ASME Flange ، BS Flange ، DIN Flanges ، EN Flange | معيار: | B16.5 ، B16.47 السلسلة A ، السلسلة B |
|---|---|---|---|
| شفة: | سهل الارتداء، Weldneck، مفصل لاب، أعمى | المناسب: | الكوع ، المحملة ، المخفض ، الغطاء |
| مادة: | الفولاذ المقاوم للصدأ ، الكربون الصلب ، سبائك الصلب ، سبائك النيكل | مقاس: | وفقا للمعيار أو الرسم custome |
| شكل: | تجهيزات ذات حواف | التعبئة والتغليف: | حالة الخشب الرقائقي / البليت |
| إبراز: | ASTM A105 flanged fitting,A234 WPB flange tee,A860 WPHY 65 steel flange,A234 WPB flange tee,A860 WPHY 65 steel flange |
||

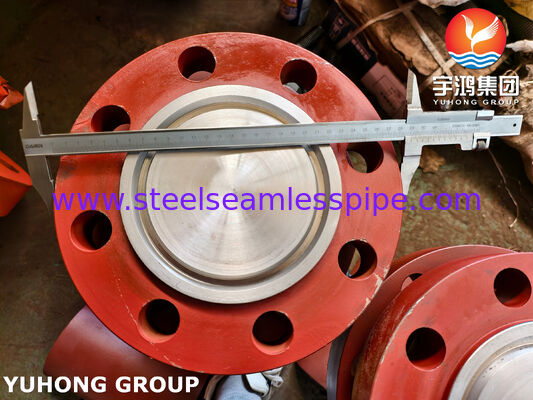

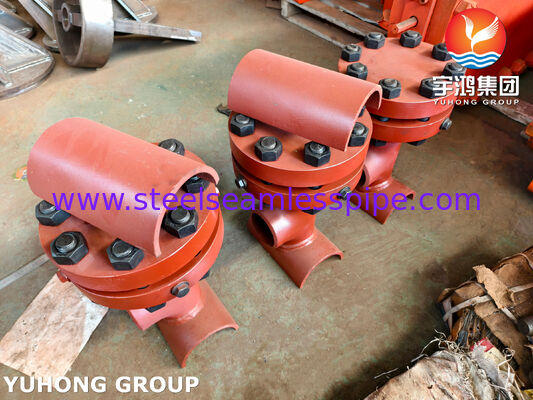

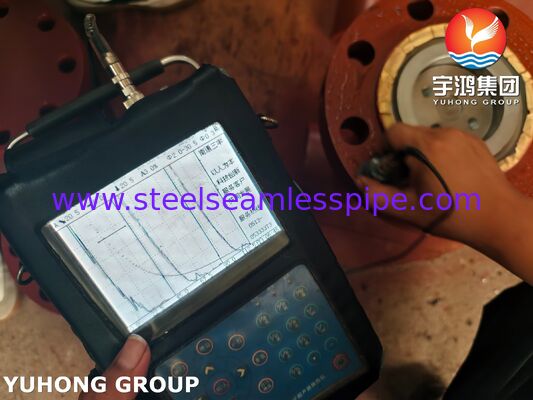

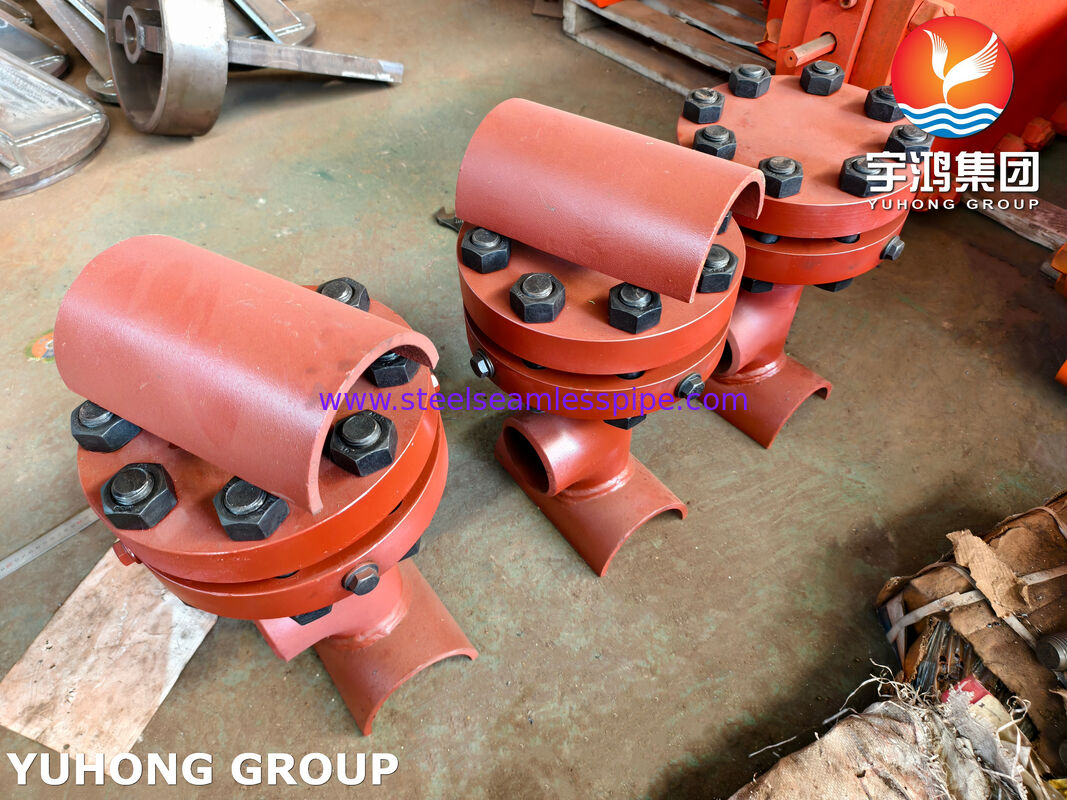

Flanged Fittings, ASTM A105 Flange with A234 WPB Tee for Oil and Gas System Component
Why Combine a Flange with a Fitting?
Piping systems have two fundamental types of joints:
1. Permanent Joints: Welded joints for strength, integrity, and leak resistance.
2. Removable/Demountable Joints: Flanged or threaded joints for maintenance, inspection, and equipment connection.
A "Flange + Fitting" combination strategically places a removable joint at a specific, critical point in an otherwise permanent system. The fitting (e.g., elbow, tee, reducer) changes the flow direction or pipe size, while the flange provides the bolted, dismountable interface.
Specification of Forged Flanges
| Type | Flange |
| Material Grade |
ASTM A105, ASTM A182, ASTM A564 Carbon Steel, Alloy Steel, Stainless Steel, Nickel Alloy ... |
| Standard | ASME B16.5, B16.47 series A&B |
| Manufacture Method | Forged |
| Size | 1/2" to 48", sch5S to sch.XXS or custom |
| Class | 150#, 300#, 400#, 600#, 900#, 1500#, 2500# |
| Surface Treatment | Galvanized/Anti-Corrosion Coating |
| Application | For Pipe Connection |
Specification of Buttweld Fittings
| Type | Fitting |
| Material Grade |
ASTM A234, ASTM A860, ASTM A403, ASTM A815, ASTM B366 Carbon Steel, Alloy Steel, Stainless Steel, Nickel Alloy ... |
| Standard | ASME B16.9 |
| Manufacture Method | Buttweld |
| Size | 1/2" to 48", sch5S to sch.XXS or custom |
| Pattern | Elbow, Tee, Reducer, Cap |
| Surface Treatment | Galvanized/Anti-Corrosion Coating |
| Application | For Pipe Connection |
Common Standard Configurations
A. Flanged Fittings (Integral Flange)
The flange is cast or forged as one piece with the fitting body. This is a single, ready-to-install unit.
Examples:
Flanged Elbow: Changes direction (90° or 45°) with flanged ends.
Flanged Tee: Creates a branch with all three ends flanged.
Flanged Reducer: Changes pipe size with flanged ends.
Standard: ASME B16.5 (Pipe Flanges and Flanged Fittings: NPS ½" to 24"). This standard covers the dimensions, ratings, and tolerances for these specific fittings.
B. Fabricated Combinations (Flange + Welding Fitting)
This involves welding a standard flange to a standard welding fitting. It's the most common and flexible approach.
Components Used:
Flange: Per ASME B16.5 or B16.47.
Welding Fitting: Per ASME B16.9 (Butt-Weld) or B16.11 (Socket-Weld/Threaded).
Most Common Example: Flanged Outlet Tee
This is a Butt-Weld Tee (B16.9) with a Flange (B16.5) welded to its branch outlet.
Specification: Tee, BW x BW x RF (Butt Weld x Butt Weld x Raised Face Flange).
Other Examples:
Flanged Stub End: A Lap Joint Flange + a Stub End (B16.9) for easy-alignment systems.
Flanged Nozzle: A welding boss or coupling (B16.11) with a flange welded on for instrument connections.
Applications
Flanged tees are used across industries where piping needs to be modular or accessible:
Water & Wastewater Treatment: For diverting flow to different processing tanks or filters.
Chemical & Petrochemical Plants: In lines requiring frequent pigging, cleaning, or catalyst loading/unloading.
Power Generation: In cooling water, feedwater, and auxiliary systems where equipment needs isolation.
Shipbuilding & Offshore: For ballast, bilge, and seawater systems that require robust, bolt-together piping.
HVAC & Industrial Plumbing: In large-scale chilled water or steam distribution headers.
