| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | YUHONG |
| إصدار الشهادات: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| رقم الموديل: | TP405، TP409، TP410، TP430، TP439، TP444، TP446، TP441 |
| الحد الأدنى لكمية: | 100 كلغ |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | حالة الخشب الرقائقي |
| وقت التسليم: | 30-60 يوما |
| شروط الدفع: | تي / تي، خطاب الاعتماد |
| القدرة على العرض: | 1000 طن شهريا |
| معيار: | ASTM A268 ، ASME SA268 | درجات المواد: | TP405، TP409، TP410، TP430، TP439، TP444، TP446، TP441 |
|---|---|---|---|
| القطر الخارجي: | 6.35-152.4 ملم أو حسب الطلب | سمك الجدار: | 0.5-25 مم أو حسب الطلب |
| طول: | 6 أمتار أو حسب الطلب | الانتهاء من السطح: | صلب مشرق، مخلل ومصلب، مصقول ميكانيكيًا |
| نهاية: | نهاية بسيطة ، نهاية مشطوفة | التطبيقات: | صناعة البتروكيماويات وتوليد الطاقة ومحطات النفط والغاز والمبادلات الحرارية والمكثفات وما إلى ذلك. |

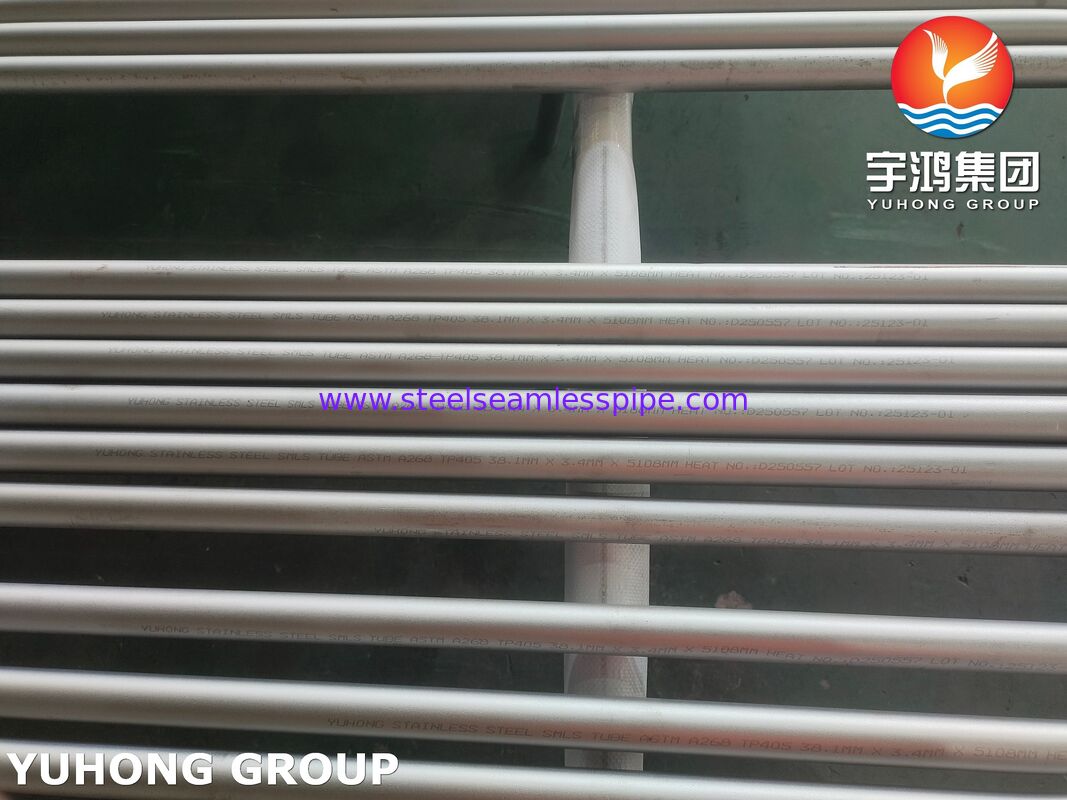

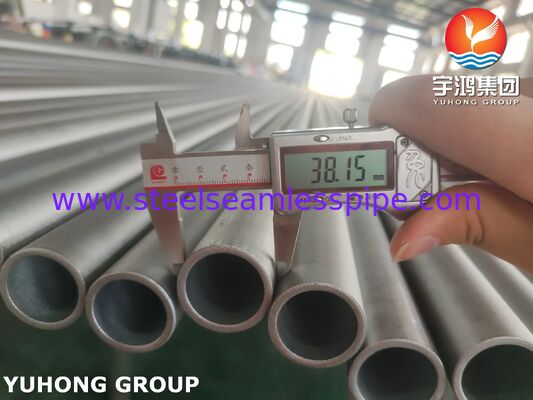

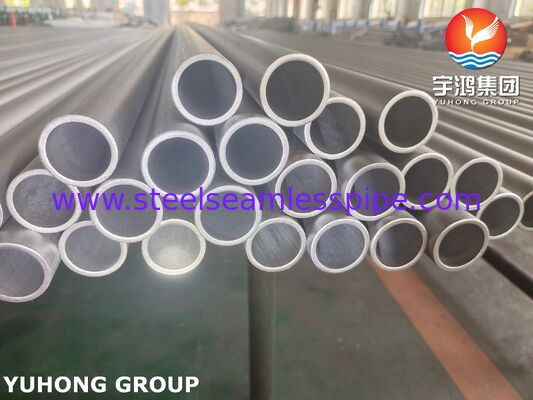

ASTM A268 TP405 Stainless Steel Seamless Tubes For Petrochemical Industry
ASTM A268 TP405 stainless steel tube is a ferritic and martensitic stainless steel tube for general corrosion-resistant and high-temperature service. TP405 grade corresponds to UNS S40500, and is a straight-chromium ferritic stainless steel grade with controlled aluminum content, which is designed to improve weldability and reduce brittleness compared to conventional 400-series stainless steels. Different from welded tubes, TP405 stainless steel seamless tubes are produced by hot rolling and cold drawing/rolling processes with no welding seam, delivering unified metallographic structure, superior pressure resistance, and consistent mechanical performance. SS405 grade is ferromagnetic, features moderate corrosion resistance, excellent high-temperature oxidation resistance, and good formability after annealing treatment. It is widely used in medium-temperature industrial systems requiring anti-oxidation, anti-corrosion and stable structural performance.
YUHONG GROUP specializes in TP405, TP410, TP430, etc. stainelss steel tubes complied with ASTM 268/ASME SA268 specification. The OD sizes range from 6.35mm to 152.4mm. As for length per tube, we generally provide 6 meters or cut into fixed length based on clients’ request.
Chemical Composition(%):
| C | Si | Mn | P | S | Cr | Ni | Al |
| ≤0.08 | ≤1.00 | ≤1.00 | ≤0.040 | ≤0.030 | 11.50 – 14.50 | ≤0.50 | 0.10 – 0.30 |
Mechanical Properties:
| Performance Index | Standard Value |
| Tensile Strength (Rm) | ≥415MPa |
| Yield Strength (Rp0.2) | ≥205MPa |
| Elongation(A) | ≥22% |
| Max Hardness (HRB) | ≤95HRB |
Key Features of ASTM A268 TP405 Seamless Tube:
Main Applications:
Standard Delivery Condition:
- Heat Treatment State: Fully annealed (bright annealing or ordinary annealing), eliminating internal stress, optimizing toughness and weldability, no quenched or tempered state for conventional delivery.
- Surface State: Pickled and descaled, no oxide scale, no rust, no cracks or folding defects; customized polishing/brushing available.
- End Treatment: Tube ends flat cut and deburred to remove burrs, convenient for on-site welding and assembly.
- Packaging: Waterproof paper wrapping + steel strip bundling + plastic pipe cap protection; plywood box packaging for precision small-diameter tubes, suitable for long-distance sea and land transportation.
