| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | YUHONG |
| إصدار الشهادات: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| رقم الموديل: | TP317L |
| الحد الأدنى لكمية: | 100 كجم |
|---|---|
| تفاصيل التغليف: | حالة الخشب الرقائقي |
| وقت التسليم: | 7 أيام |
| شروط الدفع: | الاعتماد المستندي، تي/تي |
| مادة: | TP304 ، TP304L ، TP304H TP310S ، TP316L ، TP316Ti ، TP317L ، TP321 ، TP347H ، TP321H | طلب: | غلاية ، مبادل حراري ، تبريد ، مكثف ، سخان |
|---|---|---|---|
| وزن: | 0.89 مم ، 1 مم ، 1.24 مم ، 1.5 مم ، 1.65 مم ، 2 مم ، 2.11 مم ، 2.463 مم ، 2.5 مم ، 2.77 مم ، 3.05 مم | التطوير التنظيمي: | 6.35 ملم ، 9.52 ملم ، 12.7 ملم ، 15.88 ملم ، 19.05 ملم ، 20 ملم ، 22،23 ملم ، 25 ملم ، 25.4 ملم ، 31 |
| اسم: | أنبوب U Bend من الفولاذ المقاوم للصدأ | طلب: | صناعات تجهيز الأغذية والتبريد |
| إبراز: | Seamless U bend heat exchanger tube,TP317L heat exchanger tube for petrochemical,Minimum wall thickness heat exchanger tube,TP317L heat exchanger tube for petrochemical,Minimum wall thickness heat exchanger tube |
||

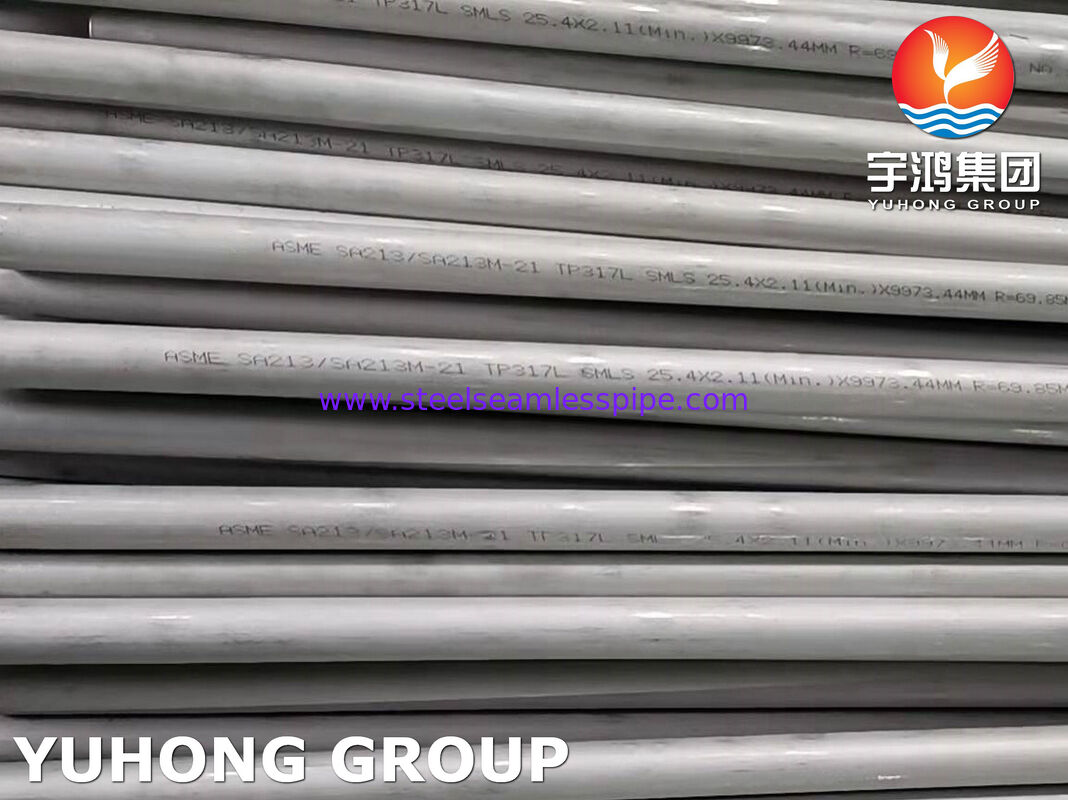

Seamless U Bend Heat Exchanger Tube for Chemical Petrochemical Oil Gas and Power Plants with Minimum Wall Thickness A213 TP317L
U bend tubes for heat exchangers applied mostly in Oil & Gas plants, Chemical & Petrochemical plants, Refineries, Power plants, Renewable energy plants.
Applications The common application fields are:
Steel Grade:
| Ferrite | Austenite | Duplex | Super Duplex | Ni-Alloys | Titanium |
|
TP410 TP409 TP409S |
TP304/304L TP347 HFG TP347 |
S31803 S31500 S31254 253MA |
S32750 S32760 |
N06600 N06601 N06625 N08810 NO8811 |
Gr.2 |
Chemical Composition of 317 / 317L Tube
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 317 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.845 min |
| SS 317L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.89 min |
he unique properties of TP317L make it the material of choice for specific, demanding industrial applications where other steels would fail prematurely .
Exceptional Chemical Resistance: The higher percentage of molybdenum (3-4%) is the key. It gives TP317L outstanding resistance to attack from sulfuric, phosphoric, and formic acids. For example, in boiling 10% sulfuric acid, TP317L corrodes at a rate of 298.28 mils per year (mmpy), while 316L corrodes at a much higher rate of 635.7 mmpy . This makes it ideal for chemical processing equipment .
Superior Performance in Chloride-Rich Environments: The combination of molybdenum and nitrogen in some variants provides a high "Pitting Resistance Equivalent" (PRE) number, making TP317L significantly more resistant to the pitting and crevice corrosion caused by chlorides (e.g., saltwater) . This is critical for applications in marine environments, pollution control (flue-gas desulfurization), and pulp and paper manufacturing .
Reliability in High-Temperature Service: TP317L offers higher creep, stress-to-rupture, and tensile strength at elevated temperatures compared to conventional stainless steels . It also resists scaling up to about 1650°F (899°C) . This reliability is essential for components in power generation, such as condensers, and in refinery operations .

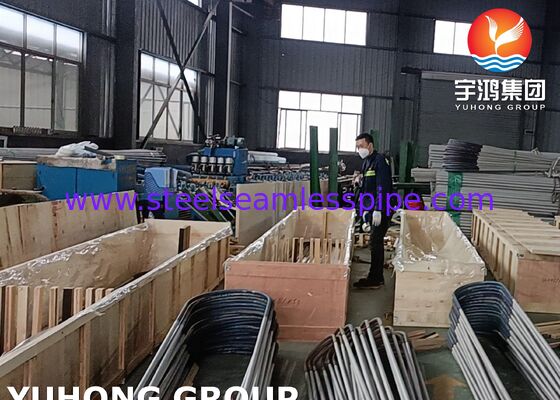

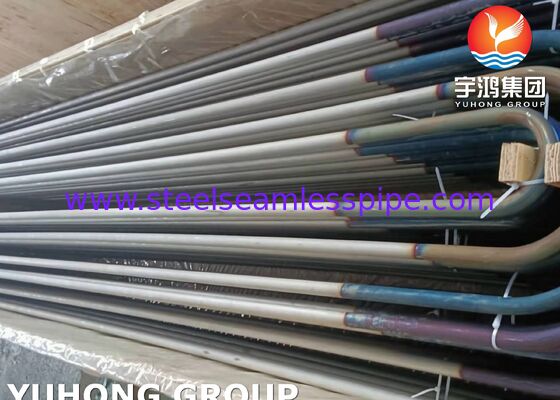

U-Bend Tubes:
-TEMA RCB 2.31 Standard Of The Tubular Exchanger Manufacturers Association (9th Edition).
-ASTM A688/ASME SA688 Standard Specification For Welded Tubes Of Austenitic Corrosion Resistant
Steel Grade Designed For Feed Water Boilers.
-ASTM B163/ASME SA163 Standard Techinical Requirements For Tubes Of Nickel And Nickel Alloy For
Condensers And Heat Exchangers.
-Customer Specifications.
Bending Radius: From 1.5*OD(Outside Diameter) To 1500mm
