| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | YUHONG |
| إصدار الشهادات: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| رقم الموديل: | INCOLOY800 ، INCOLOY 800H ، INCOLOY 800HT ، INCOLOY 825 |
| الحد الأدنى لكمية: | 100 كجم |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | علبة خشبية / علبة حديد / حزمة مع غطاء بلاستيكي / علبة منسوجة |
| وقت التسليم: | يعتمد على الكمية |
| شروط الدفع: | تي / تي، خطاب الاعتماد |
| القدرة على العرض: | 1000 طن شهريًا |

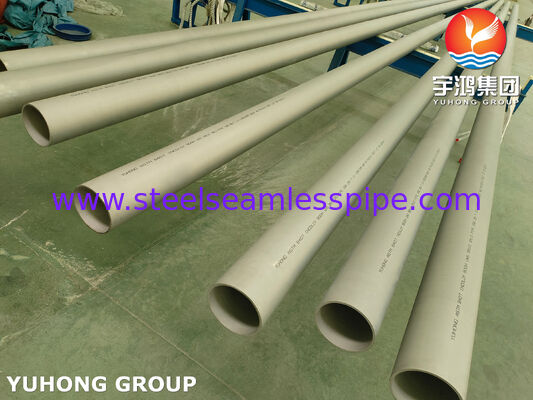

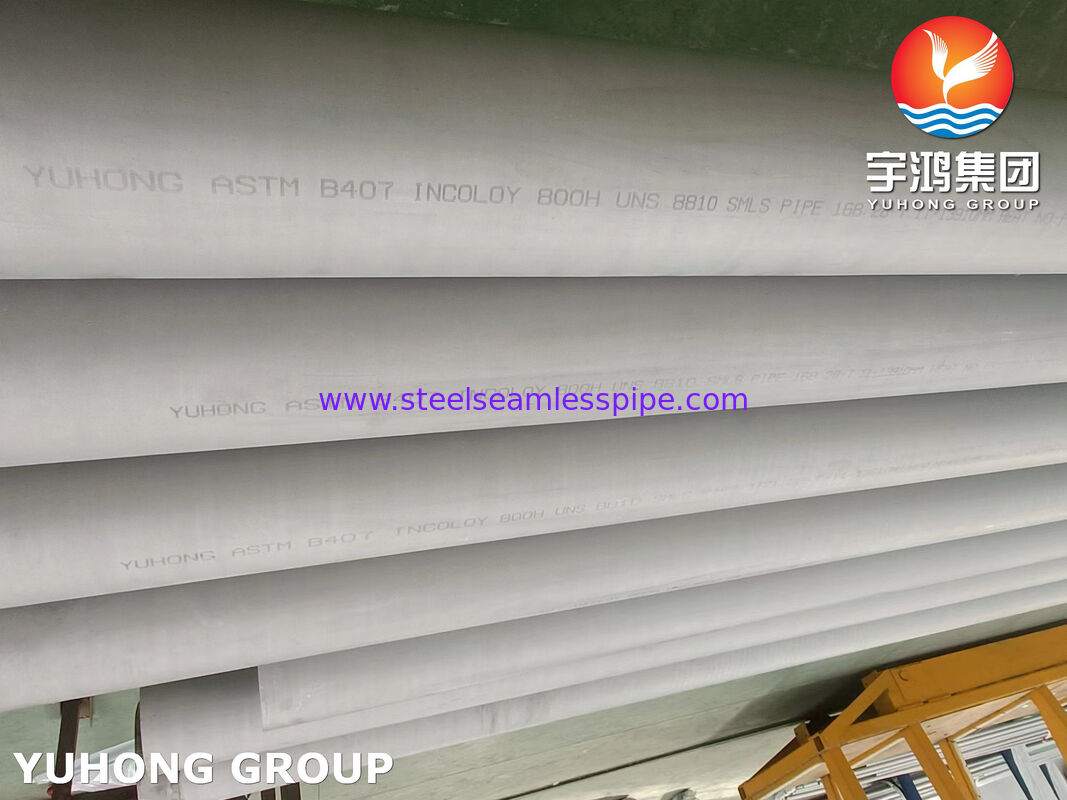

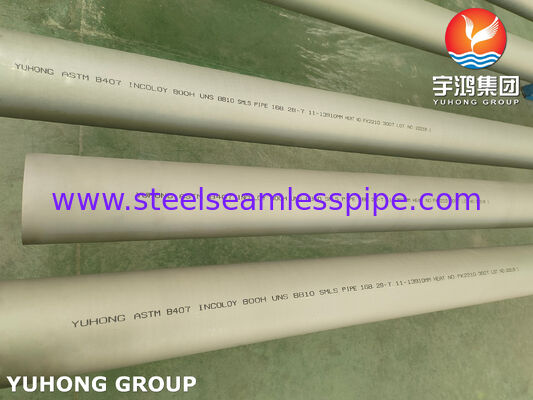

| إبراز: | High-temperature Service Nickel Alloy Seamless Pipe,ASTM B407 Standard Incoloy 800H Pipe,Creep and Rupture Resistance UNS N08810 Pipe,ASTM B407 Standard Incoloy 800H Pipe,Creep and Rupture Resistance UNS N08810 Pipe |
||
|---|---|---|---|
| Element | Composition (% by weight) | Role/Effect |
|---|---|---|
| Nickel (Ni) | 30.0 - 35.0 | Base element; provides high-temperature strength, ductility, and resistance to reducing atmospheres |
| Chromium (Cr) | 19.0 - 23.0 | Imparts oxidation and corrosion resistance by forming protective Cr₂O₃ scale |
| Iron (Fe) | Balance (approx. 39.5% min) | Balances cost and contributes to alloy strength |
| Carbon (C) | 0.05 - 0.10 | Carefully controlled to enhance high-temperature creep strength |
| Aluminum (Al) | 0.15 - 0.60 | Improves high-temperature oxidation resistance and strengthens the alloy |
| Titanium (Ti) | 0.15 - 0.60 | Works with Al to form strengthening phases and stabilize structure |
| Manganese (Mn) | ≤ 1.50 | Aids in deoxidation during manufacturing |
| Silicon (Si) | ≤ 1.00 | Improves oxidation resistance |
| Copper (Cu) | ≤ 0.75 | - |
| Sulfur (S) | ≤ 0.015 | Controlled impurity to maintain weldability and hot workability |
| Property | Minimum Value | Condition / Notes |
|---|---|---|
| Tensile Strength | 450 MPa (65,000 psi) | For hot-finished annealed or cold-worked annealed material |
| Yield Strength (0.2% Offset) | 170 MPa (25,000 psi) | - |
| Elongation | 30% | - |
| Density | 8.0 g/cm³ | - |
| Melting Range | 1350 - 1400 °C | - |
