| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | YUHONG |
| إصدار الشهادات: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| رقم الموديل: | أسم SB111 C71500 |
| الحد الأدنى لكمية: | 100 كجم |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | علبة / حزمة من الحديد / الحزمة مع غطاء بلاستيكي |
| وقت التسليم: | 15-20 يوم عمل |
| شروط الدفع: | ، l/c ، t/t |
| القدرة على العرض: | accdord لطلب العميل |
| اسم المنتج: | أنبوب الصلب النحاسي النحاسي النحاسي | مواصفة: | ASME SB111 |
|---|---|---|---|
| مادة: | C71500 | يكتب: | سلس |
| سطح: | مصقول / مصقول مشرق | تطبيق: | المبادلات الحرارية، الأنابيب، معالجة مياه البحر |
| إبراز: | ASME SB111 C71500 copper-nickel alloy tube,seawater corrosion resistant copper alloy tube,70-30 copper-nickel seamless steel tube,seawater corrosion resistant copper alloy tube,70-30 copper-nickel seamless steel tube |
||

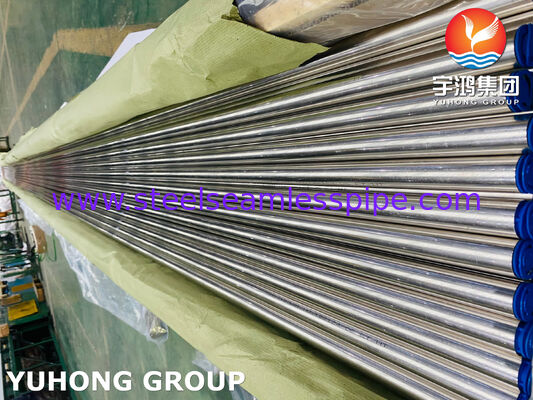

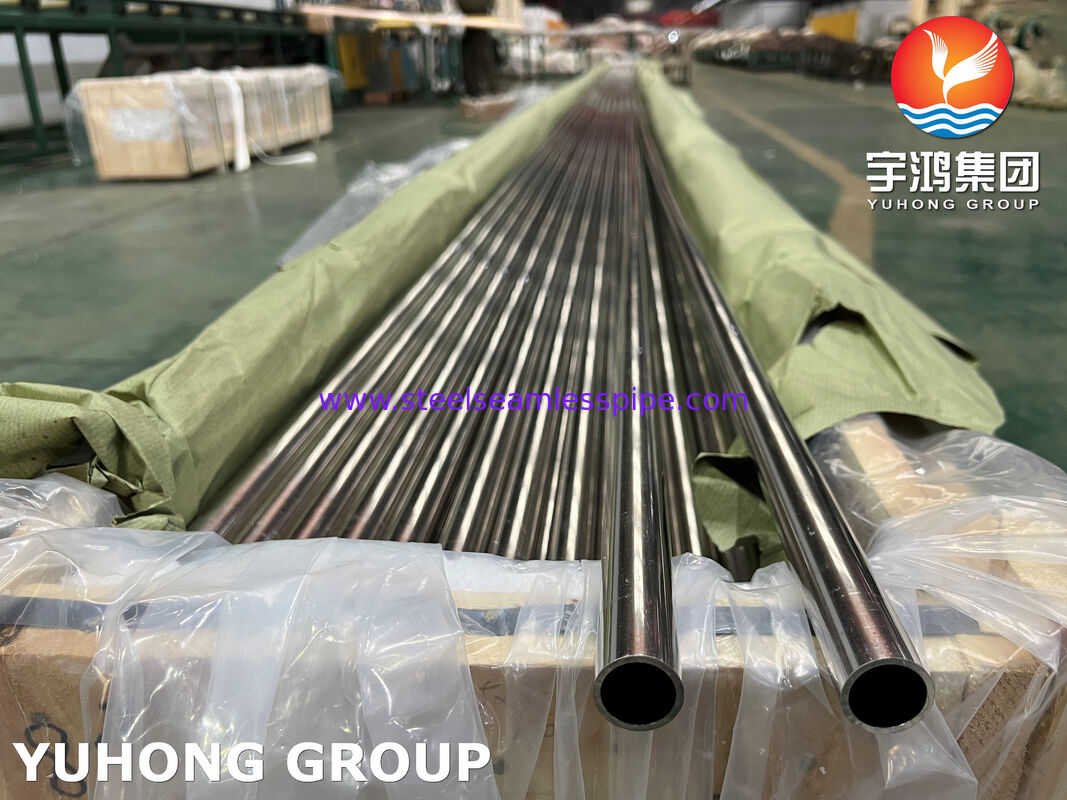

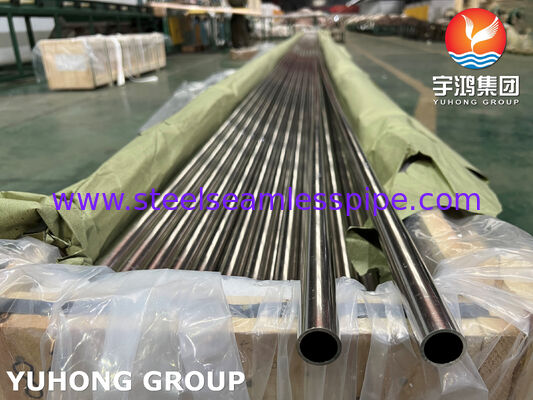

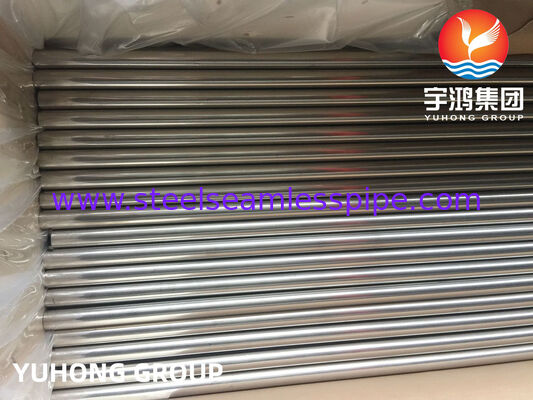

ASME SB111 C71500 SMLS 70-30 Copper-Nickel Alloy Steel Tube, Seawater Corrosion Resistance
ASME SB111 C71500 is a seamless 70-30 copper-nickel alloy tube renowned for its superior seawater corrosion resistance. The addition of nickel and iron enables the formation of a dense, stable protective surface film, effectively resisting pitting, impingement attack, and biofouling. Designed for harsh marine environments, it is the ideal choice for heat exchanger tubing in ship condensers, power plant cooling systems, and desalination plants.
1.Chemical & Mechanical Properties
| ASME SB111 C71500 Chemical Composition (%) | |||||
| Cu | Ni | Pb | Fe | Zn | Mn |
| Rem | 29.0%-33.0% | ≤0.05% | 0.4%-1.0% | ≤1.0% | ≤1.0% |
Mechanical Properties
| Code |
Name
|
Tensile Strength
min ksi
|
Yield Strength
min ksi
|
Elongation
in 2 in.,min %
|
|
O61
|
annealed
|
52 | 18 | |
|
HR50 Wall thicknesses up to 0.048 in., incl
|
drawn and stress-relieved
|
72 | 50 | 12 |
|
HR50
Wall thicknesses over 0.048 in.
|
drawn and stress-relieved
|
72 | 50 | 15 |
Physical properties
| Thermal Conductivity | Coefficient of Thermal Expansion | Modulus of Elasticity | Density |
| ~29 W/m·K | 16.2 x 10⁻⁶ /K | ~156 GPa | 8.94 g/cm³ |
2. Key Adventages
Exhibits excellent resistance to corrosion in seawater and brackish water, effectively resisting pitting, crevice corrosion, and stress corrosion cracking.
The alloy surface inhibits the attachment and growth of marine organisms (such as barnacles, algae), reducing maintenance costs and maintaining heat exchange efficiency.
Possesses high strength, good toughness, and ductility, making it easy for fabrication processes such as bending, welding, and forming.
Capable of providing decades of reliable, trouble-free service life under correct operating conditions.
3. Key Applications
