| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | YUHONG |
| إصدار الشهادات: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| رقم الموديل: | أستم A213 TP347 |
| الحد الأدنى لكمية: | 100 كجم |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | علبة / حزمة من الحديد / الحزمة مع غطاء بلاستيكي |
| وقت التسليم: | 5-80 أيام |
| شروط الدفع: | L/C ، T/T. |
| القدرة على العرض: | 1500tons/شهر |
| خدمة المعالجة: | الانحناء ، اللحام ، التفكيك ، اللكم ، القطع ، صب | تقنية: | مدفوقت بارد ساخن |
|---|---|---|---|
| حالة السطح: | مصقول ، مخلل ، N0.1 ، BA ، رقم 4 ، HL ، 2B | المعالجة الحرارية: | حل صلب |
| شكل: | دائري / مربع / مستطيل / بيضاوي | باكج: | حالة خشبية |
| إبراز: | ASTM A213 TP347 boiler tube,stainless steel seamless heat exchanger tube,TP347 stainless steel boiler tube,stainless steel seamless heat exchanger tube,TP347 stainless steel boiler tube |
||

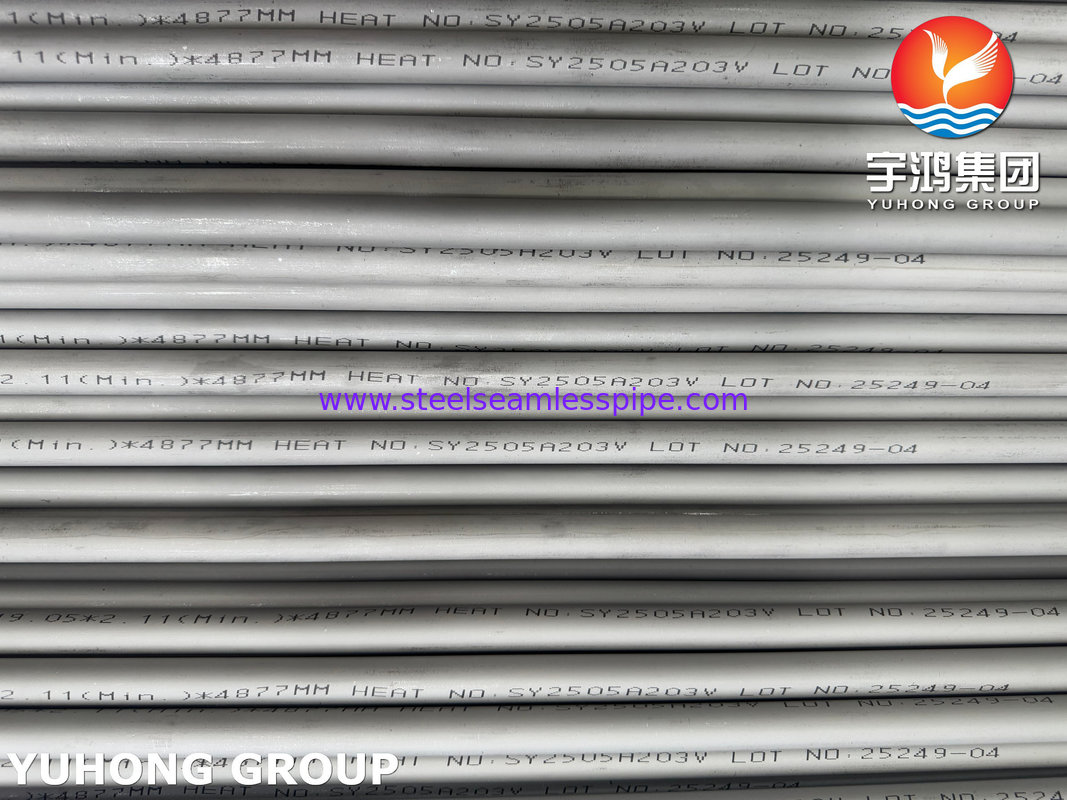

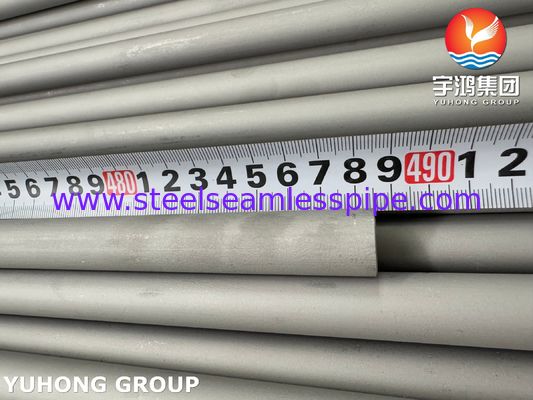

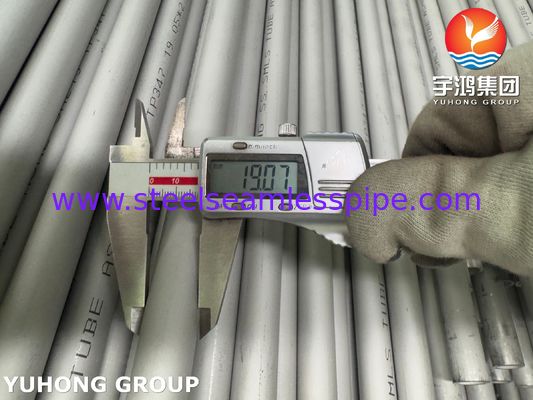

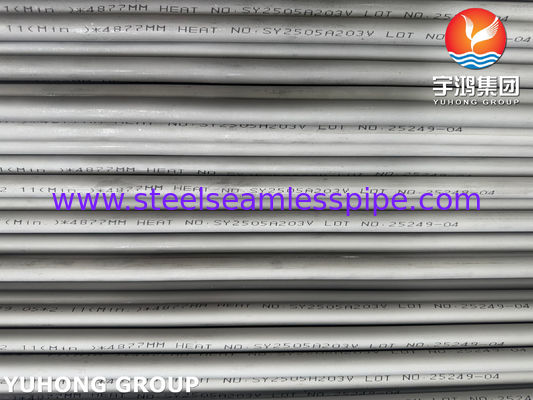

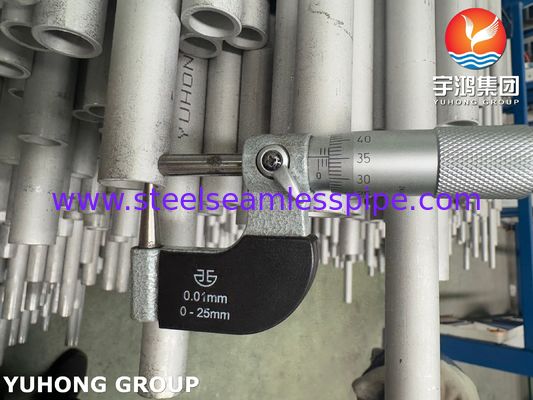

ASTM A213 covers seamless ferritic and austenitic alloy steel pipe for boilers, superheaters, and heat exchangers. It requires high-temperature performance and nondestructive testing.
TP347 offers high strength and creep resistance at high temperatures. Its excellent oxidation resistance makes it suitable for components exposed to continuous high-temperature environments. In addition to its excellent resistance to intergranular corrosion, it also exhibits good corrosion resistance against a wide range of organic and inorganic acids and alkalines.
Thus, TP347 is a proven and reliable choice for applications involving high temperatures, post-weld use, or temperatures susceptible to sensitization. It is commonly found in core high-temperature equipment in the power generation and petrochemical industries.
| UNS No | Grade | C | Si | Mn | P | S | Cr | Mo | Ni | N | Other |
| S34700 | 347 | 0.08 | 0.75 | 2.00 | 0.045 | 0.030 | 17.00/19.00 | – | 9.00/13.00 | – | Cb:10xC1.00 |
| UNS No | Grade | Proof Stress 0.2% (MPa) |
Tensile Strength (MPa) |
Elongation A5(%) |
Hardness Max | |
| HB | HRB | |||||
| S34700 | 347 | 205 | 515 | 40 | 201 | 92 |
| Properties | Metric | Imperial |
| Density | 7.7 – 8.03 g/cm3 | 0.278 – 0.290 lb/in³ |
Applications
Due to its high-temperature strength and resistance to intergranular corrosion, TP347 seamless pipe is primarily used in the following demanding environments:
Power generation industry
Superheater and reheater tubes for power station boilers
High-pressure, high-temperature steam piping
Petrochemical Industry
Tubes and pipelines for catalytic cracking units, steam reformers, and ethylene cracking furnaces.
Heat exchangers handling corrosive media.
