| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | YUHONG |
| إصدار الشهادات: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| رقم الموديل: | ASTM A106 GR.B مع CU-T2 FIN |
| الحد الأدنى لكمية: | 1pc |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | صناديق خشبية مزدوجة مع إطارات فولاذية ((كلا طرفي الأنابيب لديهما أغطية بلاستيكية) |
| وقت التسليم: | 15-20 أيام العمل |
| شروط الدفع: | L/C ، T/T. |
| القدرة على العرض: | وفقا لمتطلبات العملاء |
| اسم المنتج: | أنبوب زعنفة نوع G مضمن | مواصفات الأنبوب العارية والمواد: | ASTM A106 GR.B |
|---|---|---|---|

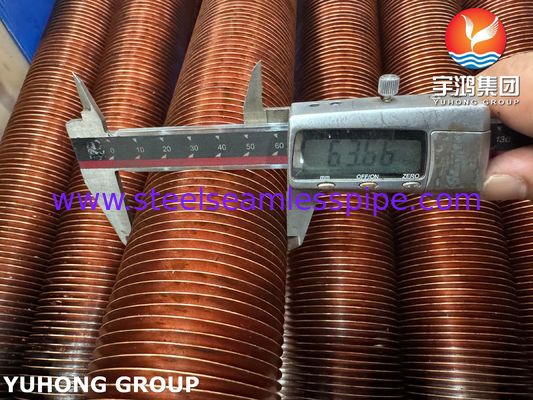

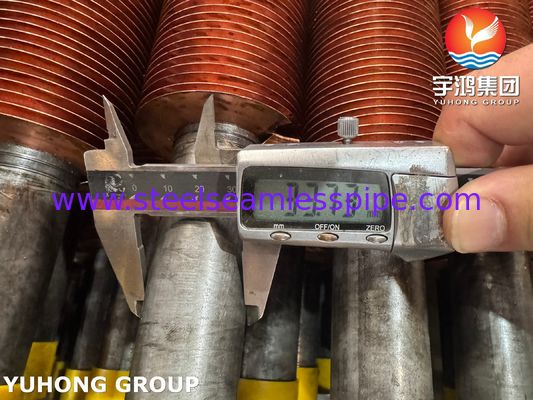

| مادة الزعنفة: | CU-T2 | أنبوب مكشوف OD: | 16-63mm |
| ارتفاع الزعنفة: | ＜ 17mm | سمك الزعنفة: | ~ 0.4mm |

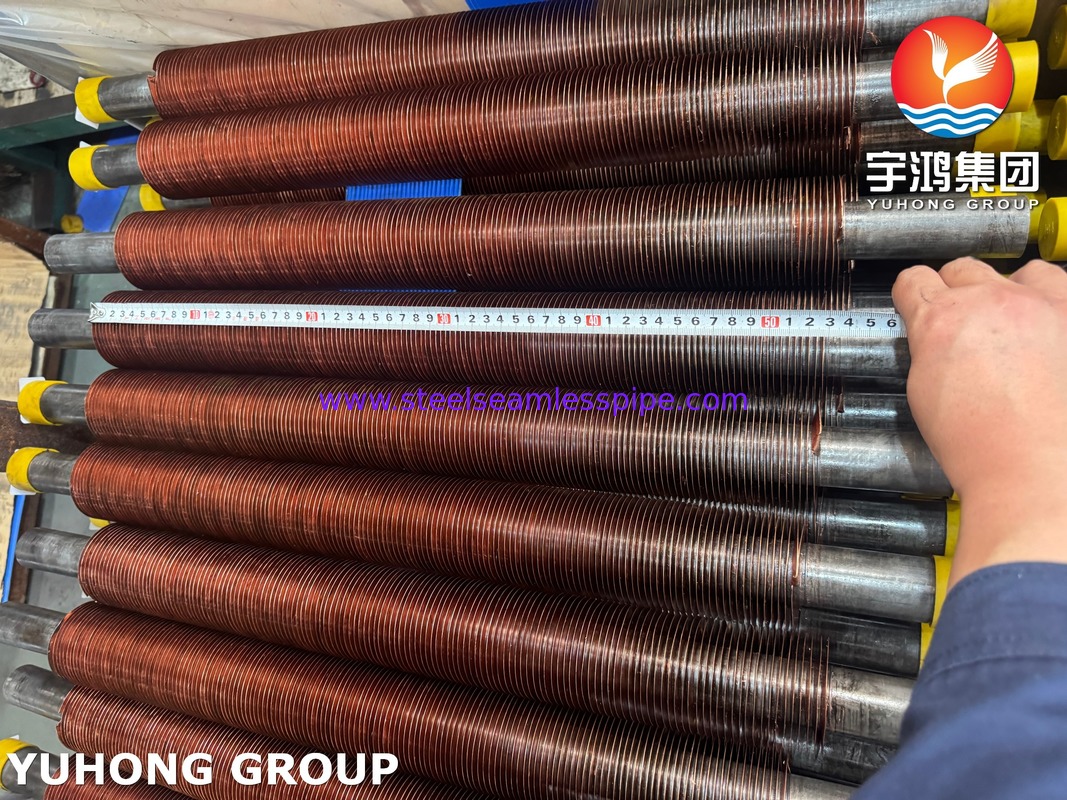

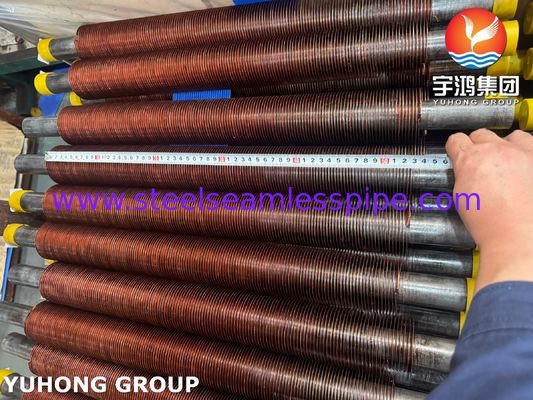

| ملعب الزعنفة: | 2.1-5 ملم | طلب: | الخارج/ المدفأة/ البتروكيماويات/ المبادل الحراري |
| اختبار: | HT / ET | ||
| إبراز: | ASTM A106 GR.B fin tube,copper T2 embedded fin tube,offshore platform fin tube,copper T2 embedded fin tube,offshore platform fin tube |
||

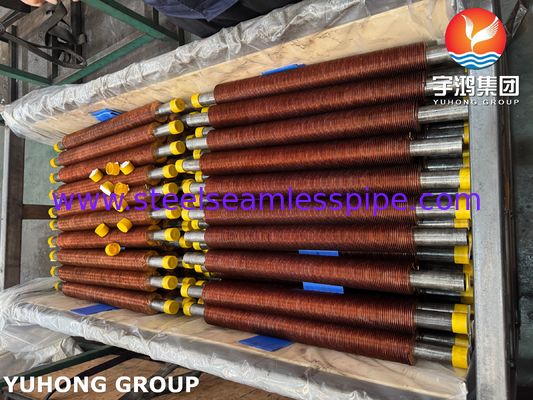

ASTM A106 GR.B With Cu-T2 Fin Embedded G Type Fin Tube, Offshore & Platform
This product is a high-performance, high-reliability composite finned tube engineered specifically for demanding offshore environments. It features a core structure of ASTM A106 GR.B high-strength seamless carbon steel as the base pipe, offering superior pressure-bearing capacity and ensuring structural integrity under high-temperature and high-pressure conditions. The Cu-T2 copper fins are permanently bonded to the base pipe via an advanced embedded manufacturing process.
This unique "Steel-Copper Composite" design delivers exceptional synergistic benefits:
The Steel Base Pipe provides the mechanical strength and ruggedness required to withstand wave-induced stresses, system pressures, and high temperatures.
The Copper Fins leverage their top-tier thermal conductivity to maximize heat transfer efficiency. Furthermore, they utilize the inherent superior corrosion resistance of copper to effectively combat the high-salinity, high-humidity marine atmosphere.
Consequently, this product is the ideal choice for various heat exchangers (such as crude oil heaters, seawater coolers, inert gas system coolers, etc.) on offshore oil & gas platforms, FPSOs, and other marine facilities. It is designed for long-term safe operation, maximized energy efficiency, and minimized lifecycle maintenance costs.
1.Chemical & Mechanical Properties
| ASTM A106 Gr.B Chemical Composition (%) |
|||||||||
| C | Mn | P | S | Si | Cr | Cu | Mo | Ni | V |
| ≤0.30% | 0.29% ~ 1.06% | ≤0.035% |
≤0.035% |
≥0.10% | ≤ 0.40% | ≤ 0.40% | ≤ 0.15% | ≤ 0.40% | ≤ 0.08% |
| Cu-T2 Fin | T2 Copper is a grade of high-purity copper. Its key characteristic is that the combined content of Copper and Silver is not less than 99.90%, meaning the total of other impurity elements must be strictly controlled below 0.1%. It is renowned for its excellent electrical and thermal conductivity. |
Mechanical Properties
| Component | Mechanical Performance | Key Features |
|
ASTM A106 Gr.B |
|
|
| Cu-T2 Fin | ||
| Tensile Strength | Annealed (O) | ≥ 195 MPa |
| Hard (H) | 295 - 380 MPa | |
| Yield Strength | Annealed (O) | ≤ 65 MPa |
| Hard (H) | 250 - 350 MPa | |
| Elongation | Annealed (O) | ≥ 40% |
| Hard (H) | 10% - 20% | |
| Hardness | Annealed (O) | HBW ≤ 40 |
| Hard (H) | HBW 70 - 110 | |
| Shear Strength | Annealed (O) | ~ 150 MPa |
| Hard (H) | ~ 250 MPa | |
2. Key Features
3. Key Applications
