| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | YUHONG |
| إصدار الشهادات: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| رقم الموديل: | EN10305 ، ASTM A254 ، DIN 74234 |
| الحد الأدنى لكمية: | 100 كجم |
|---|---|
| تفاصيل التغليف: | حالة الخشب الرقائقي ، حزمة ، البليت |
| وقت التسليم: | 7 أيام |
| شروط الدفع: | L/C ، T/T. |
| معيار: | EN10305 ، ASTM A254 ، DIN 74234 ، SAE J527 | مادة: | 10 # ، Q215 ، ST35 ، 10 # -45 # ، Q195-Q345 ، ST35-ST52 |
|---|---|---|---|
| OD: | 4.76 - 16 ملم | بالوزن: | 0.71 - 1.22 ملم |
| يكتب: | أنبوب لحام مزدوج وحيدة | اختبار: | ET ، HT ، اختبار التسطيح ، اختبار التمدد ، اختبار نترات الزئبق ؛ اختبار بخار الأمونيا تحليل كيميائي؛ |
| إبراز: | carbon steel bundy tube,copper coated bundyweld tube,double walled steel tube,copper coated bundyweld tube,double walled steel tube |
||

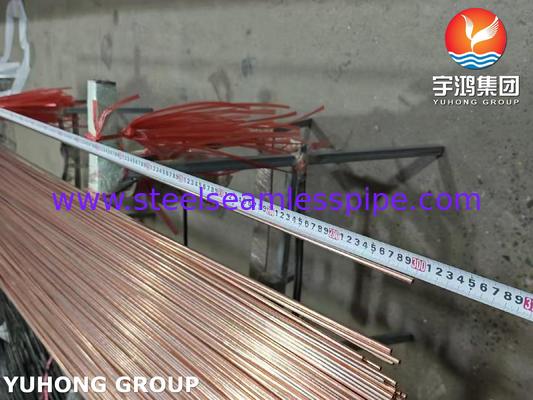

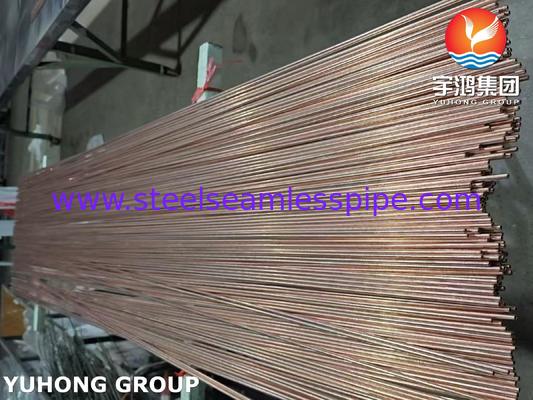

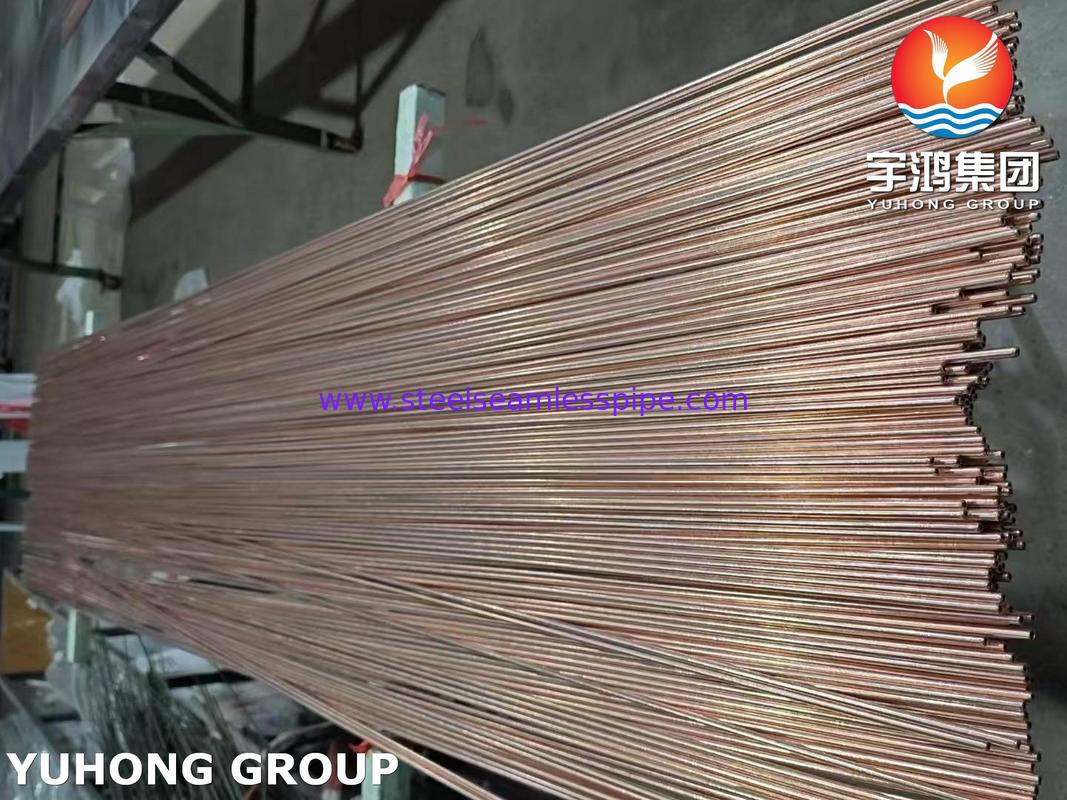

Carbon Steel Copper Coated Bundy Tube Double Walled Steel Bundyweld Tube
Bundy tube is type of double-walled low-carbon steel tube manufactured by rolling a copper-coated steel strip through 720°F and resistance brazing the overlapped seam in a process called Bundywelding. It may be zinc coated for corrosion protection. It is primarily used in automotive hydraulic brake lines in cars. We can supply any type and diameter of Bundy Tube your requirement calls for.
Bundy Tube
| Standard | Region / Organization | Description |
| SAE J527 | SAE (Society of Automotive Engineers, USA) | Covers double-walled, copper-coated, steel, resistance-brazed tubing for automotive and hydraulic use. |
| SAE J356 | SAE | Covers single-wall welded low-carbon steel tubing, sometimes used as alternative to Bundy. |
| ASTM A254 | ASTM (USA) | Covers copper-brazed steel tubing (also known as Bundy tubing). |
| DIN 74234 | DIN (Germany) | Specification for double-walled brazed steel tubing (Bundy tube) for brake lines. |
| EN 10305-2 | European Norm | Welded cold-drawn steel tubes for precision applications (sometimes used for Bundy-type tubes). |
Size and Tolerance
| Outer diameter (mm) |
Diameter tolerance (mm) |
Wall thickness(mm) | Wall thickness tolerance(mm) | Pressure resistance(MPa) | Burst pressure (MPa) |
| 4.76 | ±0.05 | 0.7 | +0.05/-0.08 | 41.2 | 110 |
| 6 | ±0.08 | ±0.08 | 32.7 | 85 | |
| 6.35 | ±0.08 | ±0.08 | 30.9 | 78 | |
| 8 | ±0.1 | ±0.08 | 24.5 | 67.5 | |
| 9.52 | ±0.1 | ±0.08 | 20.6 | 57 | |
| 10 | ±0.1 | ±0.08 | 19.6 | 55 | |
| 12 | ±0.1 | ±0.08 | 16.3 | 32 | |
| 10 | ±0.1 | 1 | ±0.08 | 28 | 65 |
| 12 | ±0.1 | ±0.08 | 23.3 | 56 |
Common Applications
Bundy tube is famous for its use in automotive and refrigeration systems where reliability is critical:
Automotive: Brake lines and fuel lines are the most common applications. Its strength and resistance to corrosion (especially when coated or plated) make it ideal for these safety-critical systems.
Refrigeration & AC: Used for refrigerant lines in domestic refrigerators, air conditioners, and heat pumps because it is strong and can be easily bent to fit tight spaces.
Hydraulic Lines: Used in various hydraulic systems for machinery.
General Industrial Applications: Anywhere a durable, small-diameter, pressure-resistant tube is needed.
