| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | YUHONG |
| إصدار الشهادات: | ISO13485:2016 |
| رقم الموديل: | 10g-34g |
| الحد الأدنى لكمية: | 50 كجم |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | صندوق الكرتون ، صندوق بلاستيكي ، حالة من الخشب الرقائقي |
| وقت التسليم: | 15 - 45 أيام العمل |
| شروط الدفع: | T/T ، L/C. |
| القدرة على العرض: | 13 مليار قطعة في السنة |
| رابعا مادة أنبوب الإبرة في الداخل: | SUS304 الدرجة الطبية | رابعا مواصفات أنبوب الإبرة: | ISO9626 ، ISO7864 |
|---|---|---|---|
| رابعا مقياس أنبوب الإبرة: | عادة 14 جرام ، 16g ، 18g ، 20g ، 22g ، 24g ، 26g | طول أنبوب الإبرة في الداخل: | 16mm ، 19mm ، 25mm ، 32mm ، إلخ. |
| IV سطح أنبوب الإبرة في الداخل: | مصقول | رابعا نقطة أنبوب الإبرة في الداخل: | Tri-Bevelled Back Point Point |
| بيئة الإنتاج: | 100،000 غرفة تنظيف فئة | التطبيقات: | العلاج عن طريق الوريد (مثل الأدوية ، التغذية ، العلاج الكيميائي) ، أخذ عينات من الدم ، إلخ. |
| إبراز: | SUS304 indwelling needle tube,24G intravenous therapy needle,tri-bevelled back-cut needle tube,24G intravenous therapy needle,tri-bevelled back-cut needle tube |
||

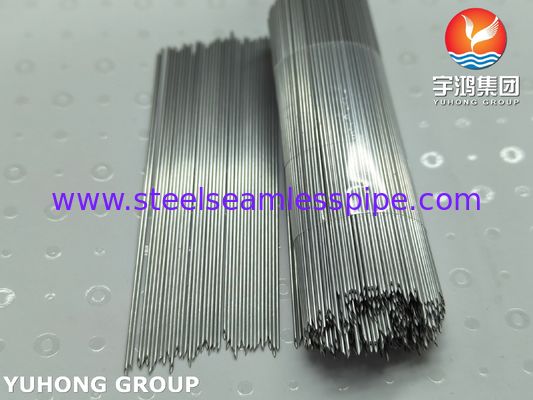

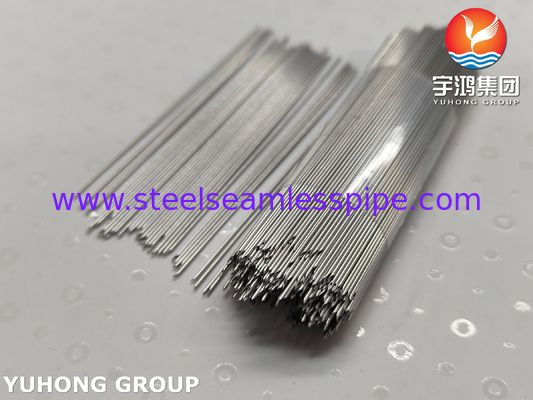

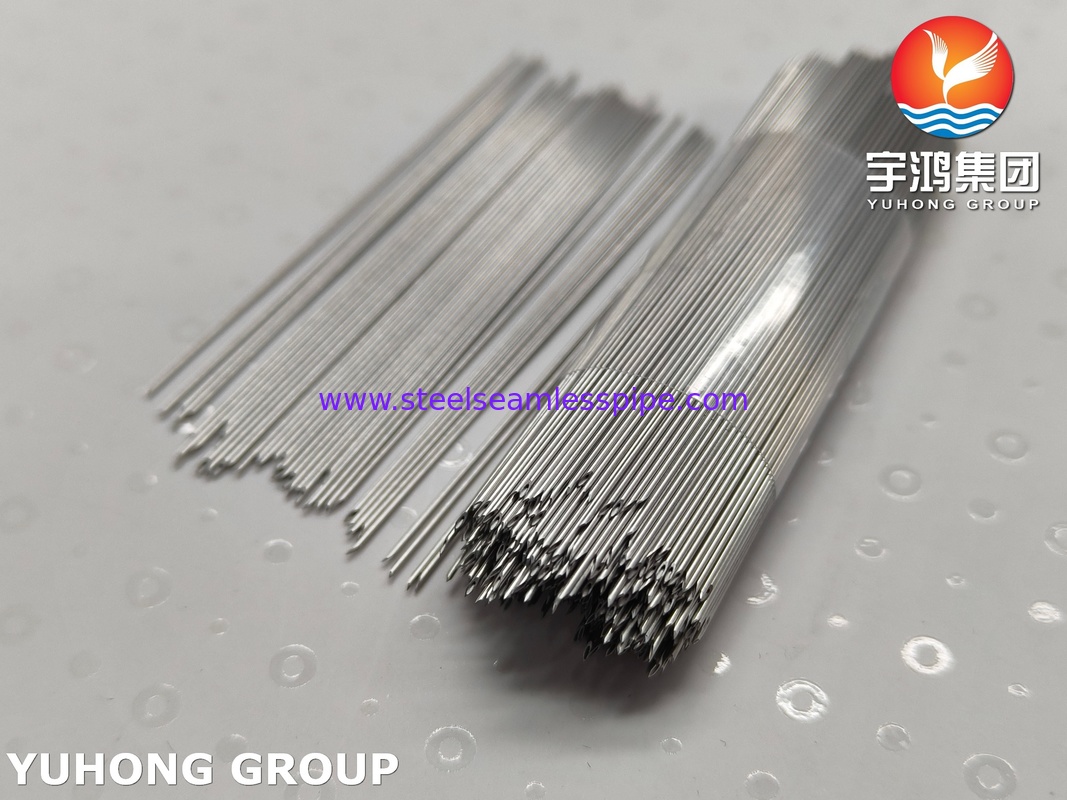

SUS304 24G Indwelling Needle Tube For Intravenous Therapy , Tri-bevelled Back-cut Tip

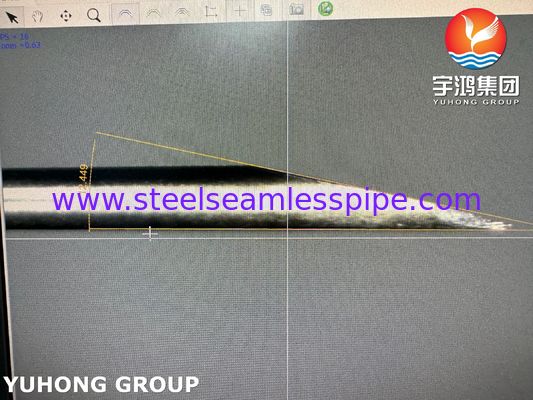

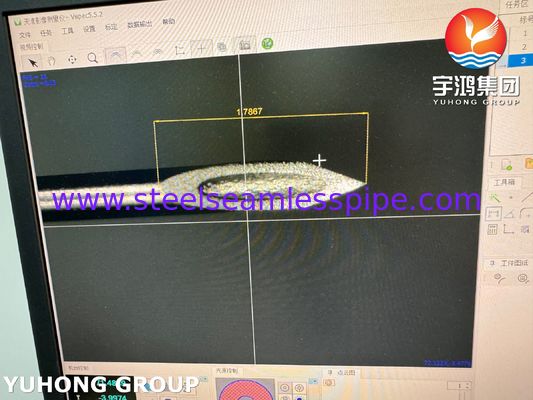

Intravenous Indwelling Needle Tubes are one of the most common needle tubes in the medical therapy. It is typically mounted over a solid needle core or inside a plastic catheter hub assembly to form a complete IV catheter set. This needle tube is made by medical-grade stainless steel 304 grade due to the material’s good corrosion resistance and formability. This indwelling needle tube is a specific component of an intravenous (IV) cannula or catheter. It is a sharp, hollow stainless steel needle that is inserted into a patient's vein to facilitate the placement of a flexible plastic cannula. Once the plastic cannula is correctly positioned in the vein, this needle is withdrawn and discarded, leaving the soft catheter in place for fluid or medication administration. The Tri-bevelled Back-cut Tip provides a sharp, clean, and minimally traumatic puncture into a vein and helps the venepuncture more smooth and easier. The typical gauge sizes of intravenous indwelling needle tubes are 14G - 26G. If clients have special size requirements, we can also customize based on their samples or drawings.
YUHONG GROUP has numerous years experience in the production of a diverse product range including stainless steel needle tubes and capillary tubes for a variety of medical devices. If you have relevant requirements about our needle tubes, welcome to send us inquiries.
For accurate quote, please provide below information:
Regular Sizes and applications:
| Gauge | OD | WT | Typical Length | Applications |
| 14G | 2.10 mm | ~0.20 mm | 45 - 50 mm | In massive trauma situations. |
| 16G | 1.65 mm | ~0.15 mm | 45 - 50 mm | Trauma,surgeries,or multiple large-volume infusions |
| 18G | 1.25 mm | ~0.10 mm | 40 - 45 mm | Blood transfusion, large volume infusions. |
| 20G | 0.90 mm | ~0.075 mm | 32 - 38 mm | Medications,hydration,and routine therapies |
| 22G | 0.70 mm | ~0.075 mm | 25 - 32 mm | Most chemotherapy infusions; For patients with smallveins, for elderly or pediatric patients |
| 24G | 0.55 mm | ~0.075 mm | 19 - 25 mm | For patients with very fragile veins, for elderly or pediatric patients |
Key Features Of IV Indwelling Needle Tubes:
Injection/Insertion Areas:
The indwelling needle tube is used to access peripheral veins.
Common insertion sites include:
