| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | YUHONG |
| إصدار الشهادات: | DNV, BV, PED, LR, ABS, TS, CCS |
| الحد الأدنى لكمية: | 200-500 كجم |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | حالات خشب الرقائق مع إطارات فولاذية (كلا طرفي الأنابيب لها أغطية بلاستيكية） |
| وقت التسليم: | 45-75 يومًا (تعتمد على متطلبات العميل |
| شروط الدفع: | L/C ، T/T ， في الأفق |
| القدرة على العرض: | وفقا لمتطلبات العملاء |
| مواصفة: | أسمي SA213/ ASTM A213 | مادة: | TP310،1.4541 |
|---|---|---|---|
| يكتب: | برد بارد سلس | طول: | مخصصة |
| شهادة:: | ABS ، VC ، LR ، GL ، DNV ، NK ، TS ، PED ، AD2000 ، GOST9941-81 ، CCS ، ISO 9001-2008 | NDT: | MT، ET، UT، HT، PT، PMI |
| تسليط الضوء: | أنبوب ASTM A213 TP321 من الفولاذ المقاوم للصدأ ، أنبوب مبادل سلس ، 1.4541 |

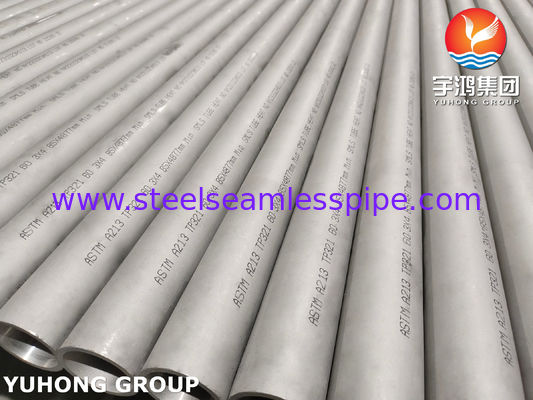

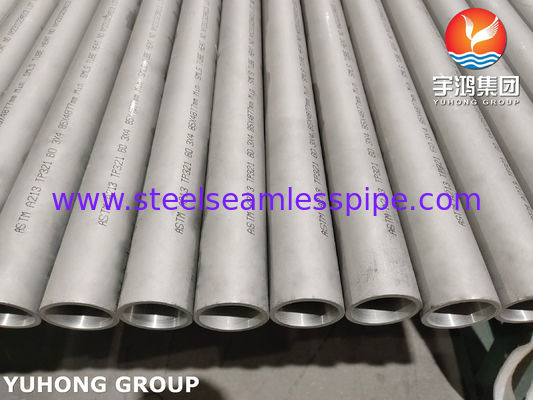

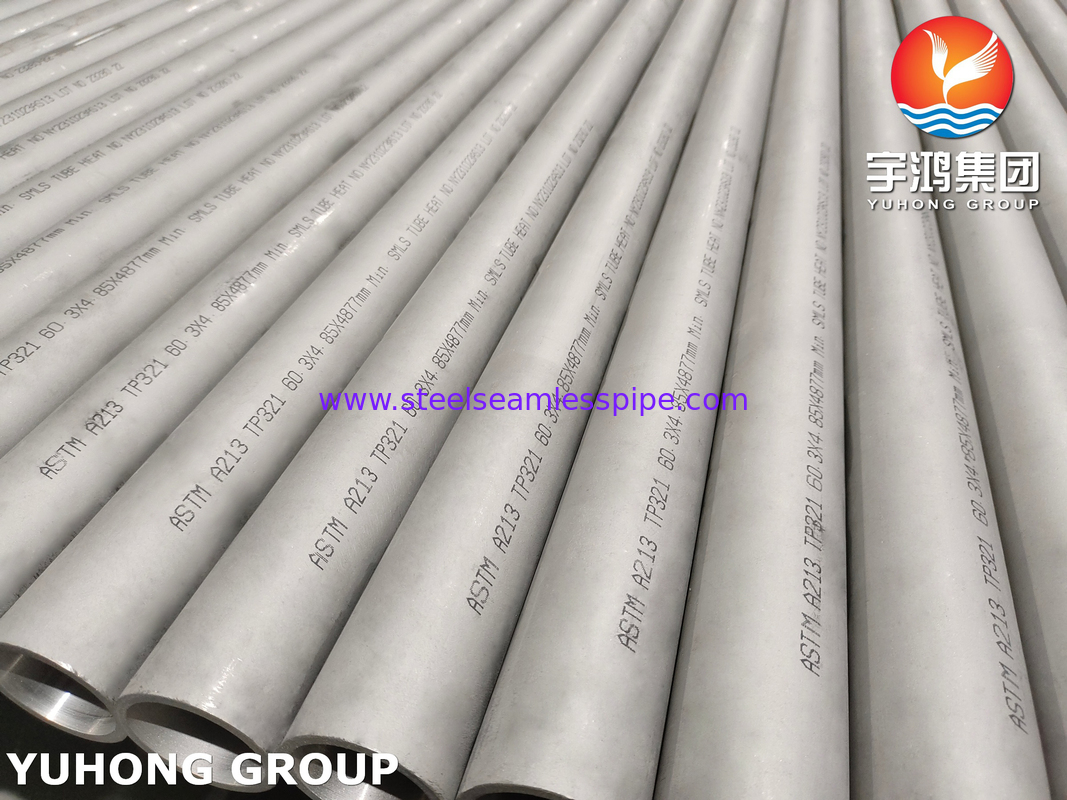

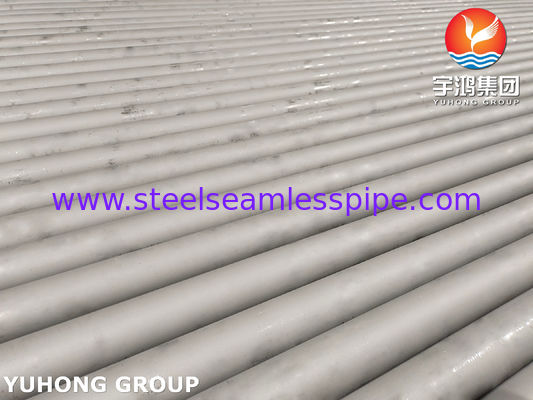

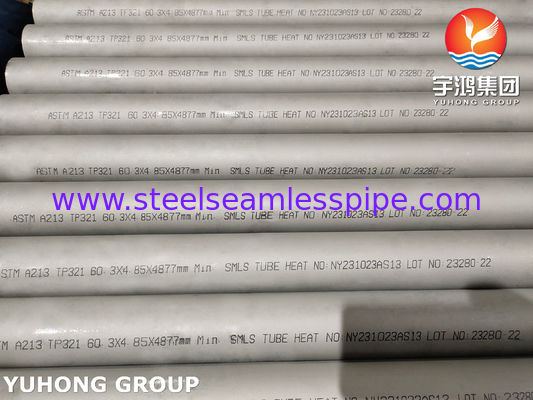

ASTM A213 TP321(1.4541) Seamless Cold Drawn Exchanger Tube
TP321 (often referred to simply as 321 or 1.4541 according to the European EN standard) is a grade of austenitic stainless steel. Its defining characteristic is the addition of Titanium (Ti), which makes it "stabilized" and highly resistant to a specific type of corrosion called sensitization.
It is a critical material in power generation, aerospace, and chemical industries, filling the gap between low-cost TP304 and high-temperature TP347. Its performance is directly tied to its titanium content and strict adherence to standard chemical/compositional controls, making it a reliable choice for harsh service conditions.
ASTM A213 TP321 Seamless Cold Drawn Exchanger Tube is a high-performance, precision-engineered tubular product designed specifically for use in high-temperature and corrosive environments, most commonly in heat exchangers, superheaters, and boilers.
Chemical Composition
|
TP321 Chemical Composition(%) |
|||||||
|
Element |
C |
Si |
Cr |
Mn |
P |
Ni |
Ti |
|
Range |
≤0.080 |
≤0.75 |
17.00-20.00 |
≤2.00 |
≤ 0.045 |
9.00-13.00 |
≥5*C |
Mechanical Properties
|
TP321 Mechanical Properties |
|||
|
Tensile Strength |
Yield Strength |
Hardness |
Elongation |
|
515MPa |
≥205MPa |
≤ 192HB |
≥40% |
Equivalent Material of TP321
|
ASTM/AISI |
UNS NO |
EN |
ISO |
JIS |
GOST |
|
TP321 |
UNS32100 |
1.4541 |
X6CrNiTi18-10 |
SUS321 |
08X18H10T |
TP321vs. TP304 and 321H
TP321 vs. TP304: 304 is more cost-effective and general-purpose but is not recommended for applications within the sensitization temperature range(450°C to 850°C) or where welded assemblies will face corrosive conditions. TP321 offers superior resistance due to its titanium stabilization.
TP321 vs. TP321H: TP321H is the high-carbon (C: 0.04-0.10%) version of TP321. The "H" denotes high-temperature service. It guarantees higher elevated temperature strength while maintaining resistance to intergranular corrosion. It is the specified material for ASME-code high-temperature pressure components. Standard TP321 prioritizes corrosion resistance.
Application of ASTM A213 TP321(1.4541) Seamless Cold Drawn Exchanger Tube
1. Power industry: Superheater and reheater tubes of power plant boilers (capable of coping with steam temperatures exceeding 600℃);
2. Petrochemical and chemical industries: Cracking furnace tubes and heat exchanger tubes (used to handle high-temperature corrosive process fluids);
3. Heat exchange equipment field: Various high-temperature heat exchangers and condensers (especially suitable for working conditions with the risk of intergranular corrosion);
4. Others: Key components of high-temperature pressure-bearing equipment (such as high-temperature pressure vessels, etc.).
