| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | YUHONG |
| إصدار الشهادات: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| رقم الموديل: | ASTM A335 P5 P9 P11 P22 أنبوب مرصع |
| الحد الأدنى لكمية: | 500 كجم |
|---|---|
| تفاصيل التغليف: | علبة خشبية /حالة حديدية |
| وقت التسليم: | 7 أيام |
| شروط الدفع: | L/C ، T/T. |
| اسم المنتج: | أنبوب مرصع | مادة أنبوب: | الصلب الكربوني ، الفولاذ المقاوم للصدأ ، سبيكة الصلب |
|---|---|---|---|
| يكتب: | لحام رصع | أنبوب OD: | 20 مم إلى 219 مم |
| سمك الأنبوب: | 2 مم إلى 16 مم | طول الأنبوب: | يمكن تخصيص |
| سمك الزعنفة: | 0.8 مم إلى 4 مم | كثافة الزعانف: | 43 زعنفة لكل متر بحد أقصى 287 زعنفة لكل متر |
| ارتفاع الزعنفة: | 0.25 بوصة (6.35 ملم) إلى 1.5 بوصة (38 ملم) | طلب: | مبرد هواء ، مبادل حراري ، مبخر ، مكثف |
ASTM A335 P5 P9 P11 P22 Studded Tube Heat Exchange System
What is a Studded Tube?
This is a specialized component designed for use in high-temperature and corrosive environments. Unlike finned tubes, which maximize convection surface area, studded tubes are primarily used to secure and protect refractory linings or to facilitate heating in certain furnace types.

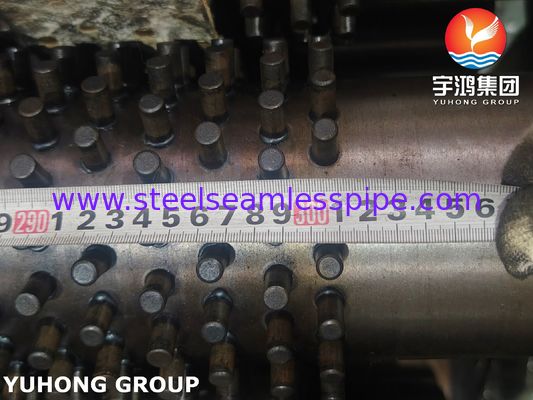

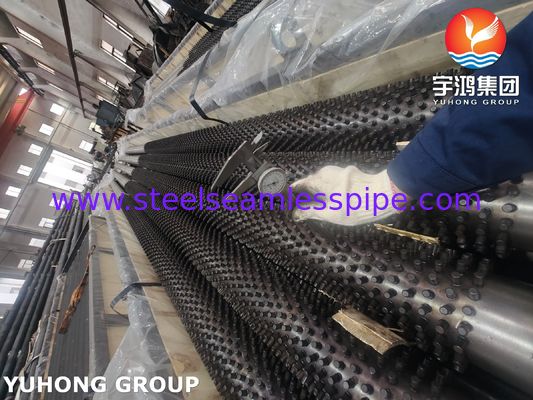

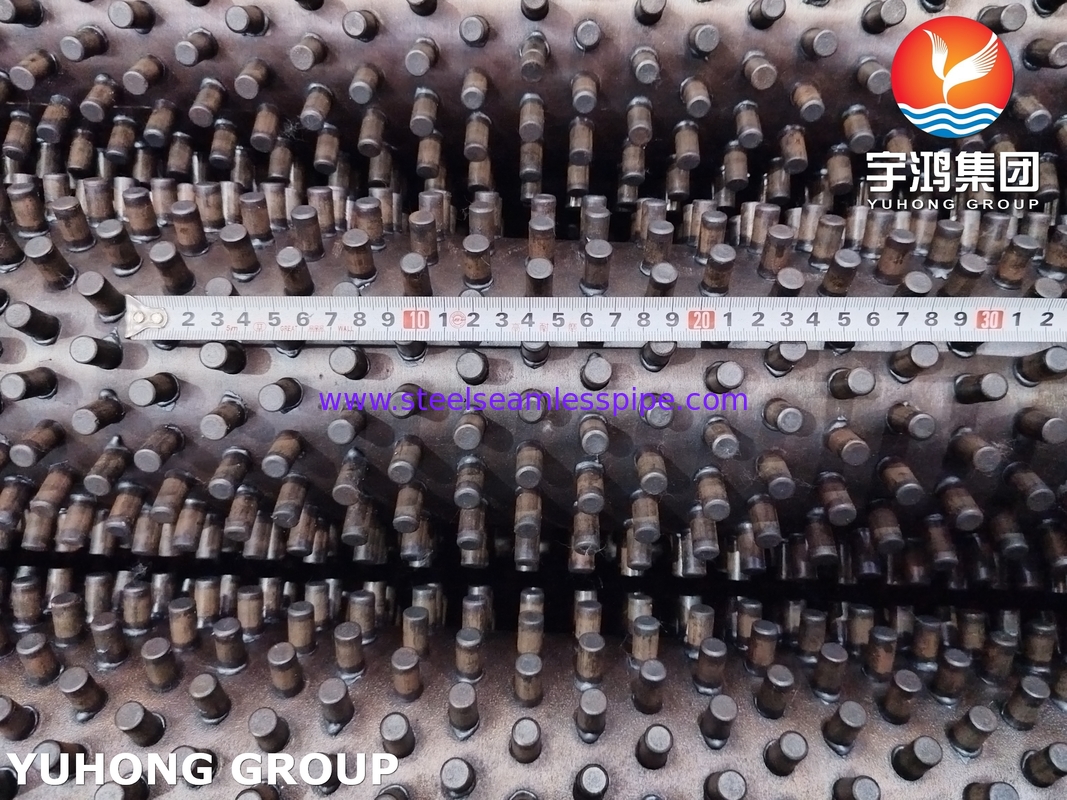

Studded tubes are manufactured by welding a series of studs (pins) to the outer surface of a base tube. These studs act as anchors, securing the castable refractory material to the tube surface.
ASTM A335 P5 base tube, combined with studs made from compatible materials, creates a robust system for lining furnaces, boilers, and reactors.
Studded Tube
|
Product: |
studded tubes, welded stud tubes,studded steel tubes,studded fin tubes |
|
Application: |
, generally in furnaces and boilers where the surface is exposed to a very corrosive environment and where very dirty gas streams require frequent or aggressive cleaning. |
|
Size: |
OD: 38 mm ~219 mm |
|
WT: 4.0 mm ~20 mm /Tube Length (Mtr) :≤ 15Mtrs |
|
|
Fin Height: 6.0 mm ~ 38 mm |
|
|
Base Tube(fin) Material: |
Carbon Steel |
|
|
Alloy Steel |
|
|
Stainless Steel |
Studded pipe size and material
| Tube O.D.: | 25~355.6 (mm) | 1”~14”(NPS) |
| Tube Wall Thk.: | 3.5~28.6 (mm) | 0.14”~1.1” |
| Tube Length: | ≤25,000 (mm) | ≤82 ft |
| Stud Dia.: | 6~25.4 (mm) | 0.23”~1” |
| Stud Height: | 10~50.8 (mm) | 0.4”~2” |
| Stud Pitch: | 8~30 (mm) | 0.3”~1.2” |
| Stud Shape: | Cylindrical, Elliptical, Round, Lens type | |
| Stud to tube surface angle: | Vertical, angular, staggered rows | |
| Stud Material: |
C.S. (most common grade is Q235B) S.S. (most common grade are AISI 304, 316, 409, 410, 321,347 ) A.S. |
|
| Tube Material: |
C.S. (most common grade is A106 Gr.B) S.S. (most common grade are TP304, 316, 321, 347 ) A.S.(most common grade are T/P5,9,11,22,91 ) |
|
| * This table is used as a general guide to our capabilities, please call us for any other customized cases. | ||
| Type | Description | Base tube | Fin specification (mm) | ||
| Type | O.D. (mm) | Fin pitch | Fin height | Fin thick | |
| Welding | HFW fin tube | 16-219 | 3-25 | 5-30 | 0.8-3 |
| H/HH Type Fin Tube | 25-63 | 8-30 | <200 | 1.5-3.5 | |
| Studed fin tube | 25-219 | 8-30 | 5-35 | φ5-20 | |
Alloy Steel Chemical Compositions
| Grade | UNS Designation | Composition, % | ||||||
| Carbon | Manganese | Phosphorus, max | Sulfur, max | Silicon | Chromium | Molybdenum | ||
| P1 | K11522 | 0.10-0.20 | 0.30-0.80 | 0.025 | 0.025 | 0.10-0.50 | -- | 0.44-0.65 |
| P2 | K11547 | 0.10-0.20 | 0.30-0.61 | 0.025 | 0.025 | 0.10-0.30 | 0.50-0.81 | 0.44-0.65 |
| P5 | K41545 | 0.15MAX | 0.30-0.60 | 0.025 | 0.025 | 0.50MAX | 4.00-6.00 | 0.45-0.65 |
| P9 | K90941 | 0.15MAX | 0.30-0.60 | 0.025 | 0.025 | 0.25-1.00 | 1.00-1.50 | 0.44-0.65 |
| P11 | K11597 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50-1.00 | 1.00-1.50 | 0.44-0.65 |
| P12 | K11562 | 0.05-0.15 | 0.30-0.61 | 0.025 | 0.025 | 0.5MAX | 0.80-1.25 | 0.44-0.65 |
| P15 | K11578 | 0.05-0.15 | 0..30-0.60 | 0.025 | 0.025 | 1.15-1.65 | -- | 0.44-0.65 |
| P21 | K31545 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50MAX | 2.65-3.35 | 0.80-1.06 |
| Grade | Chemical Composition(%) | ||||||
| C | Mn | P | S | Si | Cr | Mo | |
| P5 | ≤0.015 | 0.30-0.60 | ≤0.025 | ≤0.025 | ≤0.50 | 4.00-6.00 | 0.45-0.65 |
| Grade | Mechanical property | ||
| Tensile Strength(MPa) | Yield Strength(MPa) | Elongation(%) | |
| P5 | ≥415 | ≥205 | ≥30 |
Applications
Studded tubes are essential in the most demanding, high-temperature industrial processes:
Petroleum refining:
Fluid catalytic cracking (FCC) units: Cyclones and plenums in reactors and regenerators.
Steam methane reformer (SMR) furnaces: Components of the radiant walls and roof of the furnace, where process tubes are exposed to intense flames.
Chemical processing: Used in ethylene cracking furnaces and other high-temperature reactors.
Power Generation:
